VND10B(011Y)
ActiveSTMicroelectronics

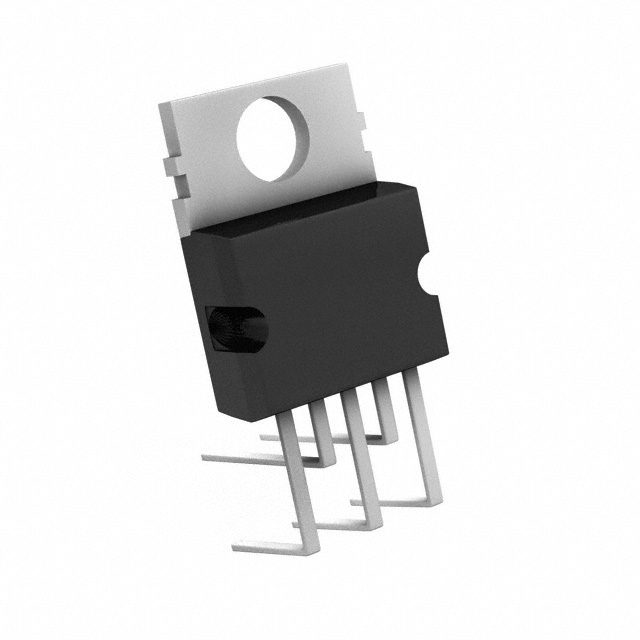

IC PWR DRVR N-CH 1:1 5PENTAWATT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VND10B(011Y)
ActiveSTMicroelectronics
IC PWR DRVR N-CH 1:1 5PENTAWATT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VND10B(011Y) | VND10 Series |
|---|---|---|
| Current - Output (Max) [Max] | 3.4 A | 3.4 - 6 A |
| Fault Protection | Open Load Detect, Over Temperature | Open Load Detect, Over Temperature, Current Limiting (Fixed), Over Voltage |
| Features | Status Flag | Status Flag |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Through Hole | Through Hole, Surface Mount |
| Number of Outputs | 2 | 1 - 2 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side, Low Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | Pentawatt-5 (Horizontal, Bent and Staggered Leads) | Pentawatt-5 (Horizontal, Bent and Staggered Leads), IPAK, TO-251-3 Short Leads, TO-251AA, PowerSO-10 Exposed Bottom Pad |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 100 mOhm | 100 - 150 mOhm |
| Supplier Device Package | 5-PENTAWATT | 5-PENTAWATT, IPAK, 10-PowerSO |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 26 V | 26 V |
| Voltage - Load [Min] | 6 V | 6 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VND10 Series
IC PWR DRVR N-CH 1:1 5PENTAWATT
| Part | Output Configuration | Package / Case | Supplier Device Package | Features | Rds On (Typ) | Input Type | Fault Protection | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Number of Outputs | Voltage - Supply (Vcc/Vdd) | Voltage - Load [Max] | Voltage - Load [Min] | Interface | Switch Type | Mounting Type | Ratio - Input:Output [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VND10B(011Y) | High Side | Pentawatt-5 (Horizontal, Bent and Staggered Leads) | 5-PENTAWATT | Status Flag | 100 mOhm | Non-Inverting | Open Load Detect, Over Temperature | 3.4 A | 150 °C | -40 °C | N-Channel | 2 | 26 V | 6 V | On/Off | General Purpose | Through Hole | 1:1 | |
STMicroelectronics VND10N06-1-E | Low Side | IPAK, TO-251-3 Short Leads, TO-251AA | IPAK | 150 mOhm | Non-Inverting | Current Limiting (Fixed), Over Temperature, Over Voltage | 6 A | N-Channel | 1 | On/Off | General Purpose | Through Hole | 1:1 | ||||||
STMicroelectronics VND10BSP13TR | High Side | PowerSO-10 Exposed Bottom Pad | 10-PowerSO | Status Flag | 100 mOhm | Non-Inverting | Open Load Detect, Over Temperature | 3.4 A | 150 °C | -40 °C | N-Channel | 2 | 26 V | 6 V | On/Off | General Purpose | Surface Mount | 1:1 |
Description
General part information
VND10 Series
Power Switch/Driver 1:1 N-Channel 3.4A 5-PENTAWATT
