UPD1002-A/MQ
ActiveMicrochip Technology
IC USB PORT POWER CTRLR
Deep-Dive with AI
Search across all available documentation for this part.
UPD1002-A/MQ
ActiveMicrochip Technology
IC USB PORT POWER CTRLR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UPD1002-A/MQ | UPD1002 Series |
|---|---|---|
| Applications | USB, Peripherals | USB, Peripherals |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 70 °C | 70 - 85 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |

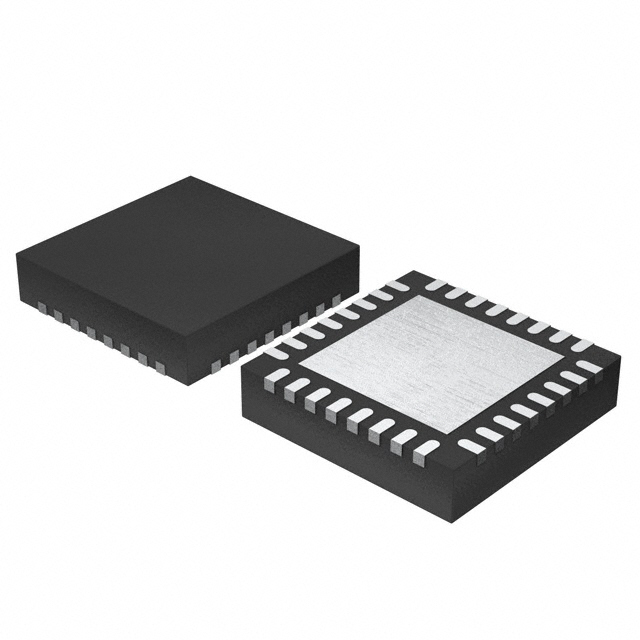

| Package / Case | 32-VFQFN Exposed Pad | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-SQFN (5x5) | 32-SQFN (5x5) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.71 | |
UPD1002 Series
IC USB PORT POWER CTRLR
| Part | Supplier Device Package | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Applications |
|---|---|---|---|---|---|---|
Microchip Technology UPD1002-A/MQ | 32-SQFN (5x5) | 32-VFQFN Exposed Pad | 70 °C | 0 °C | Surface Mount | Peripherals, USB |
Microchip Technology UPD1002-AI/MQ | 32-SQFN (5x5) | 32-VFQFN Exposed Pad | 85 °C | -40 °C | Surface Mount | Peripherals, USB |
Description
General part information
UPD1002 Series
USB, Peripherals PMIC 32-SQFN (5x5)
Documents
Technical documentation and resources
No documents available
