TS74230L

Active

Tagore Technology

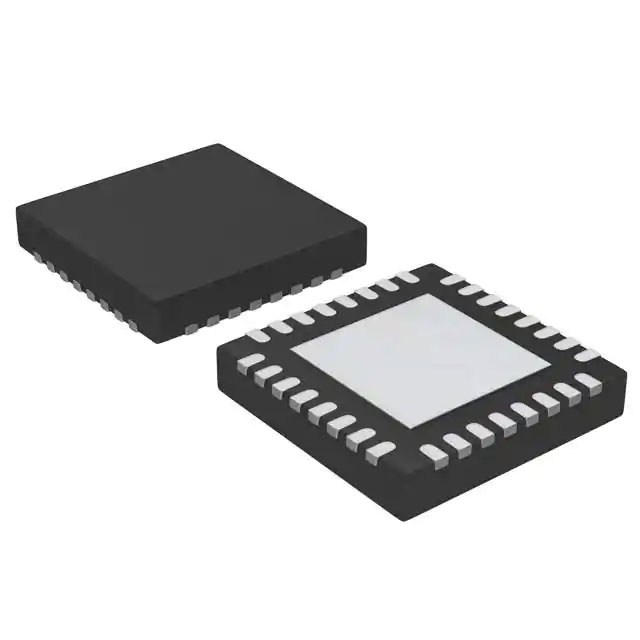

IC RF SWITCH SPDT 3GHZ 32QFN

Search across all available documentation for this part.

Active

Tagore Technology

IC RF SWITCH SPDT 3GHZ 32QFN

Technical Specifications

Parameters and characteristics for this part

IC RF SWITCH SPDT 3GHZ 32QFN

Part	Topology	IIP3	Test Frequency	P1dB	RF Type	Isolation	Frequency Range [Max]	Frequency Range [Min]	Insertion Loss	Impedance	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Supplier Device Package	Mounting Type
Tagore Technology TS74230L	Reflective	74 dBm	800 MHz	46 dBm	Cellular, LTE	45 dB	3 GHz	1 MHz	0.4 dB	50 Ohms	5.5 V	2.6 V	32-VFQFN Exposed Pad	85 °C	-40 °C	SPDT	32-QFN (4x4)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	1	$ 24.71

General part information

RF Switch IC Cellular, LTE SPDT 50Ohm 32-QFN (4x4)

Technical documentation and resources

No documents available
