EN3P11MRAPCBN
ActiveSwitchcraft Inc.

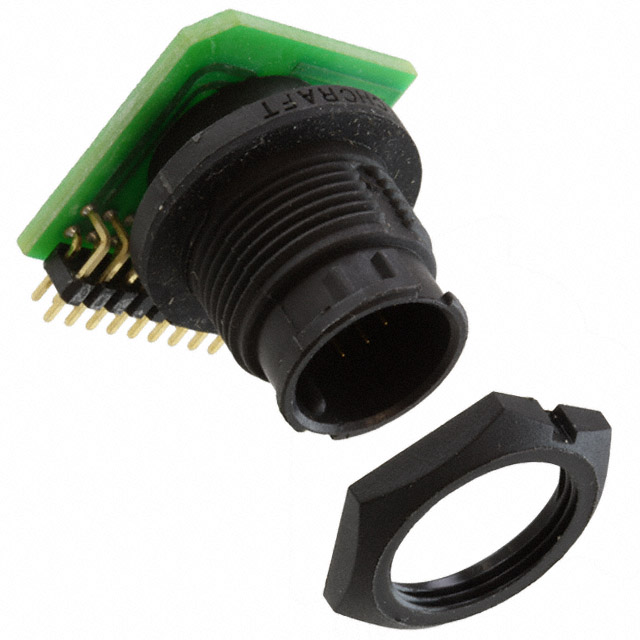

CONN RCPT MALE 11POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P11MRAPCBN
ActiveSwitchcraft Inc.
CONN RCPT MALE 11POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P11MRAPCBN | EN3P11 Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 11 | 11 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Circuit Board, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P11 Series
STANDARD CIRCULAR CONNECTOR 11P MALE PANEL
| Part | Fastening Type | Shielding | Number of Positions | Contact Material | Contact Finish - Mating | Primary Material | Insert Material | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Color | Connector Type | Orientation | Ingress Protection | Material Flammability Rating | Mounting Feature | Applications | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P11M26SX | Bayonet Lock | Unshielded | 11 | Copper Alloy | Gold | Plastic | Elastomer | 3 A | 65 °C | -40 °C | 250 VAC | Black | Male Pins, Receptacle | Keyed | IP66/IP68 | UL94 V-0 | Bulkhead - Front Side Nut | General Purpose, Instrumentation, Marine, Medical | ||
Switchcraft Inc. EN3P11MRAPCBN | Bayonet Lock | Unshielded | 11 | Copper Alloy | Gold | Plastic | Elastomer | 2 A | 65 °C | -40 °C | 250 VAC | Black | Male Pins, Receptacle | Keyed | IP66/IP68 | UL94 V-0 | Bulkhead - Front Side Nut | General Purpose, Instrumentation, Marine, Medical | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P11FRAPCBN | Bayonet Lock | Unshielded | 11 | Copper Alloy | Gold | Plastic | Elastomer | 2 A | 65 °C | -40 °C | 250 VAC | Black | Receptacle, Female Sockets | Keyed | IP66/IP68 | UL94 V-0 | Bulkhead - Front Side Nut | General Purpose, Instrumentation, Marine, Medical | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P11FRAPCBW | Bayonet Lock | Unshielded | 11 | Copper Alloy | Gold | Plastic | Elastomer | 2 A | 65 °C | -40 °C | 250 VAC | Black | Receptacle, Female Sockets | Keyed | IP66/IP68 | UL94 V-0 | Bulkhead - Front Side Nut | General Purpose, Instrumentation, Marine, Medical | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P11MRAPCBW | Bayonet Lock | Unshielded | 11 | Copper Alloy | Gold | Plastic | Elastomer | 2 A | 65 °C | -40 °C | 250 VAC | Black | Male Pins, Receptacle | Keyed | IP66/IP68 | UL94 V-0 | Bulkhead - Front Side Nut | General Purpose, Instrumentation, Marine, Medical | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.43 | |
| 10 | $ 12.51 | |||
| 25 | $ 12.10 | |||
Description
General part information
EN3P11 Series
11 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder
