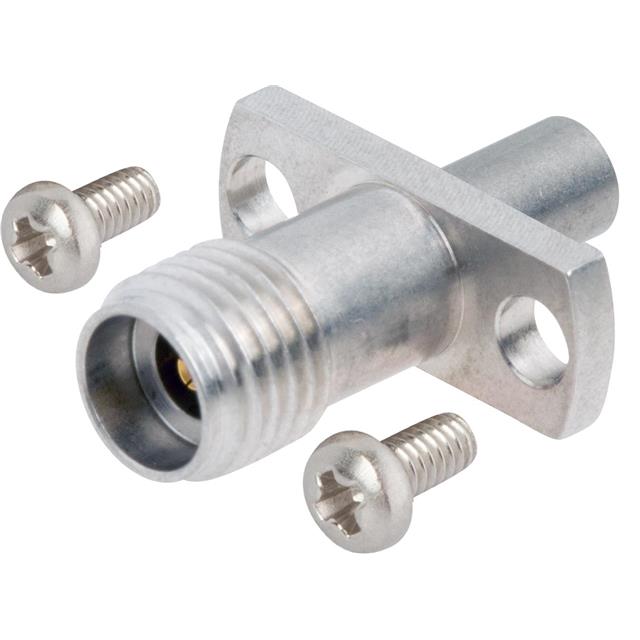

1115-6124

Active

Amphenol SV Microwave

2.92MM FEMALE TO SMP MALE, FD, F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1115-6124

Active

Amphenol SV Microwave

2.92MM FEMALE TO SMP MALE, FD, F

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 163.12
		10	$ 149.68
		25	$ 143.92
		50	$ 139.13

Description

General part information

1115-61 Series

Adapter Coaxial Connector SMP Plug, Male Pin To 2.92mm (OS-2.9) Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1115-6124	1115-61 Series

Adapter Series	SMP to 2.92mm	SMPM, SMP to 2.92mm
Adapter Series	-	2.92 mm
Adapter Series	-	2.92 mm
Adapter Series	-	2.92 mm
Adapter Type	Plug to Jack	Plug to Jack, Jack to Jack
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female
Conversion Type	Between Series	Between Series, Same Series
Convert From (Adapter End)	SMP Plug, Male Pin	SMPM Plug, Male Pin, OS-2.9, Jack, Female Socket, SMP Plug, Male Pin
Convert From (Adapter End)	-	2.92 mm
Convert To (Adapter End)	2.92 mm	2.92 mm
Convert To (Adapter End)	OS-2.9 Jack, Female Socket	OS-2.9 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetherimide (PEI)
Fastening Type	Threaded, Snap-On	Threaded, Snap-On
Features	Full Detent	Full Detent, Smooth Bore
Frequency - Max [Max]	40 GHz	40 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Feature	Flange	Flange, Bulkhead
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

1115-61 Series

2.92MM FEMALE TO SMPM MALE, FD,

Part	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Features	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Adapter Series	Frequency - Max [Max]	Mating Cycles	Impedance	Adapter Type	Style	Conversion Type	Body Material	Center Contact Material	Center Contact Plating	Mounting Feature	Dielectric Material	Center Gender	Convert From (Adapter End)	Adapter Series [Max]	Adapter Series [Min]
Amphenol SV Microwave 1115-6126	SMPM Plug, Male Pin	2.92 mm	OS-2.9 Jack, Female Socket	Full Detent	Snap-On, Threaded	-65 ░C	165 °C	SMPM	2.92 mm	40 GHz	500	50 Ohms	Plug to Jack	Straight	Between Series	Stainless Steel	Beryllium Copper	Gold	Flange	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1115-6127	SMPM Plug, Male Pin	2.92 mm	OS-2.9 Jack, Female Socket	Smooth Bore	Snap-On, Threaded	-65 ░C	165 °C	SMPM	2.92 mm	40 GHz	500	50 Ohms	Plug to Jack	Straight	Between Series	Stainless Steel	Beryllium Copper	Gold	Flange	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1115-6128	Jack, Female Socket, OS-2.9	2.92 mm	OS-2.9 Jack, Female Socket			-65 ░C	165 °C			40 GHz	500	50 Ohms	Jack to Jack	Straight	Same Series	Stainless Steel	Beryllium Copper	Gold	Flange		Female to Female	2.92 mm	2.92 mm	2.92 mm
Amphenol SV Microwave 1115-6131	Jack, Female Socket, OS-2.9	2.92 mm	OS-2.9 Jack, Female Socket			-65 ░C	165 °C			40 GHz	500	50 Ohms	Jack to Jack	Straight	Same Series	Stainless Steel	Beryllium Copper	Gold	Bulkhead	Polyetherimide (PEI)	Female to Female	2.92 mm	2.92 mm	2.92 mm
Amphenol SV Microwave 1115-6125	SMP Plug, Male Pin	2.92 mm	OS-2.9 Jack, Female Socket	Smooth Bore	Snap-On, Threaded	-65 ░C	165 °C	SMP to 2.92mm		40 GHz	500	50 Ohms	Plug to Jack	Straight	Between Series	Stainless Steel	Beryllium Copper	Gold	Flange	Polytetrafluoroethylene (PTFE)
Amphenol SV Microwave 1115-6124	SMP Plug, Male Pin	2.92 mm	OS-2.9 Jack, Female Socket	Full Detent	Snap-On, Threaded	-65 ░C	165 °C	SMP to 2.92mm		40 GHz	500	50 Ohms	Plug to Jack	Straight	Between Series	Stainless Steel	Beryllium Copper	Gold	Flange	Polytetrafluoroethylene (PTFE)
