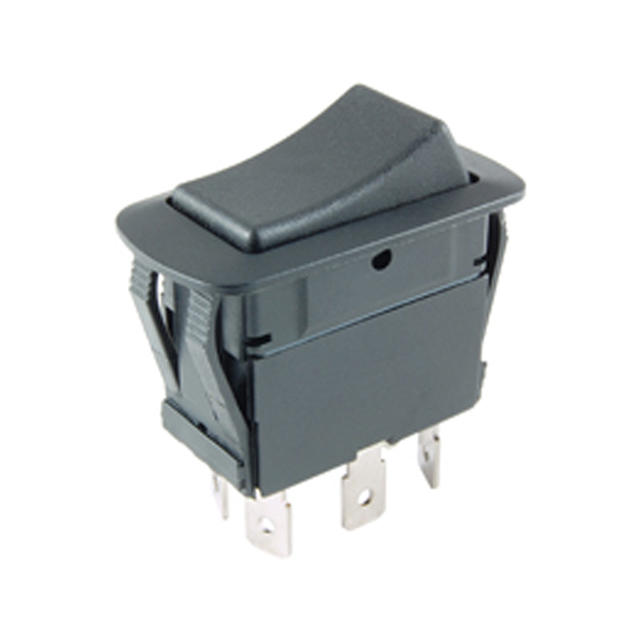

54-226W

Active

NTE Electronics, Inc

SWITCH ROCKER DPDT 21A 14V

Search across all available documentation for this part.

Active

NTE Electronics, Inc

SWITCH ROCKER DPDT 21A 14V

Technical Specifications

Parameters and characteristics for this part

Specification	54-226W

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	14 V

SWITCH ROCKER DPDT 21A 14V

Part	Ingress Protection	Actuator Type	Actuator Marking	Color - Actuator/Cap	Current Rating (Amps)	Mounting Type	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Termination Style
NTE Electronics, Inc 54-226W	IP65 - Dust Tight, Water Resistant	Concave (Curved)	No Marking	Black	21 A	Panel Mount, Snap-In	On-On	DPDT	65 °C	0 °C	14 V	Quick Connect - 0.250" (6.3mm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 21A (DC) Panel Mount, Snap-In

Technical documentation and resources

No documents available
