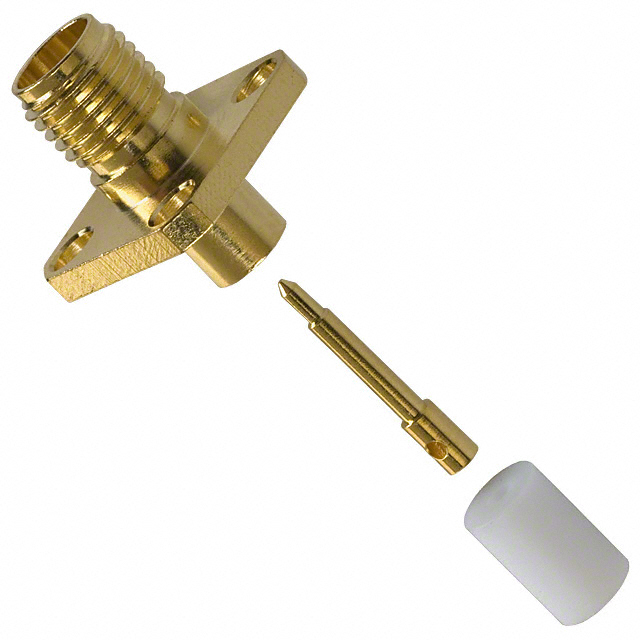

132108RP

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN RPSMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	132108RP

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	Insulator, Connector, Contact
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Voltage Rating	Includes	Impedance	Center Contact Plating	Housing Color	Connector Style	Number of Ports	Contact Termination	Connector Type	Body Finish	Shield Termination	Center Contact Material	Mating Cycles	Dielectric Material	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Frequency - Max [Max]
Amphenol RF 132108RP	500 V	Connector Contact Insulator	50 Ohms	Gold	Gold	RP-SMA	1	Solder	Jack Male Pin	Gold	Solder	Beryllium Copper	500	Polytetrafluoroethylene (PTFE)	Brass	-65 ░C	165 °C	Flange	18 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Male Pin 50 Ohms Panel Mount Solder

Technical documentation and resources

No documents available
