51-255.025D

Active

EAO

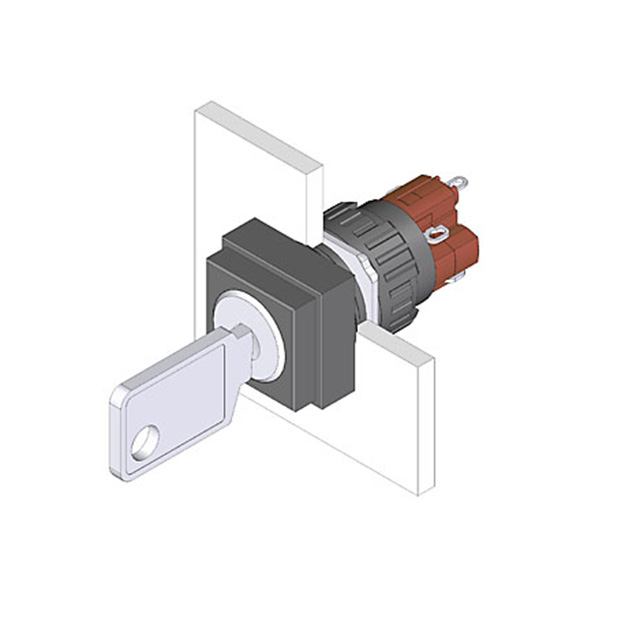

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	51-255.025D	51-255 Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	90 °
Circuit	DPST-NO/NC	DPST-NO/NC
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	5 A	5 A
Depth Behind Flange	26.5 mm	26.5 - 44.5 mm
Electrical Life	-	50000 Cycles
Features	IP65	IP65
Key Removable Positions	1 only	1 only
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions	-	21 mm˛
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Solder Lug	Solder Lug, Quick Connect, Solder
Termination Style	-	0.11 in
Termination Style	-	2.8 mm
Voltage Rating - AC	250 V	250 V

SWITCH KEYLOCK 2POS DPST 5A 250V

Part	Voltage Rating - AC	Features	Circuit	Termination Style	Depth Behind Flange	Contact Timing	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Key Removable Positions	Angle of Throw	Switch Function	Actuator Type	Number of Positions	Termination Style	Termination Style	Panel Cutout Dimensions	Electrical Life
EAO 51-255.025D	250 V	IP65	DPST-NO/NC	Solder Lug	26.5 mm	Not Specified	55 °C	-25 °C	16 mm	5 A	1 only	90 °	Off-On, On-Off	Flat Key	2
EAO 51-255.022DF	250 V	IP65	DPST-NO/NC	Quick Connect, Solder	44.5 mm	Not Specified	55 °C	-25 °C		5 A	1 only	90 °	Off-On, On-Off	Flat Key	2	0.11 in	2.8 mm	21 mm˛
EAO 51-255.025K	250 V	IP65	DPST-NO/NC	Solder Lug	35.5 mm	Not Specified	55 °C	-25 °C	16 mm	5 A	1 only	90 °	Off-On, On-Off	Flat Key	2				50000 Cycles
EAO 51-255.022D	250 V	IP65	DPST-NO/NC	Quick Connect, Solder	36 mm	Not Specified	55 °C	-25 °C	16 mm	5 A	1 only	90 °	Off-On, On-Off	Flat Key	2	0.11 in	2.8 mm
