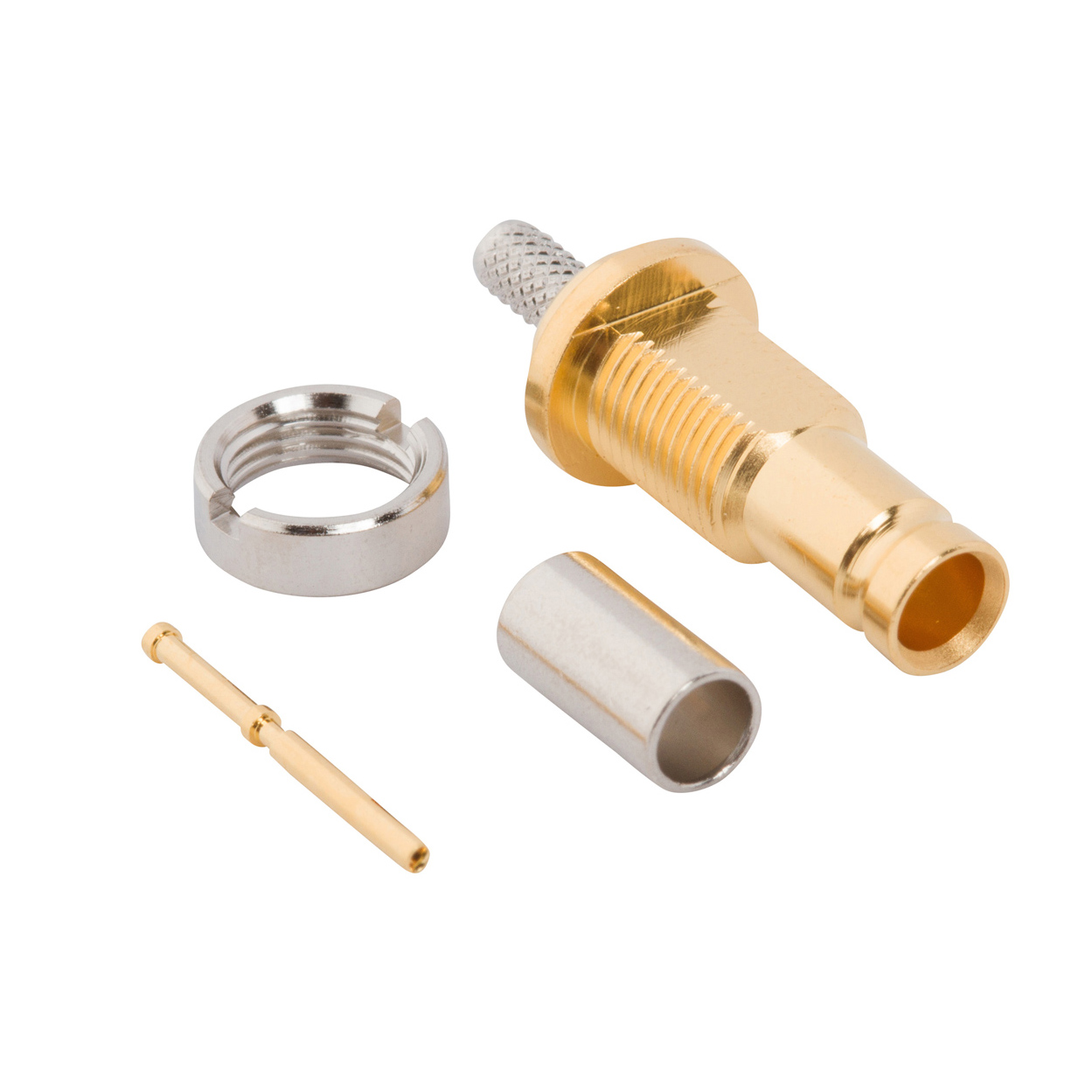

282102-75

Active

Amphenol RF

1.0/2.3 STRAIGHT CRIMP JACK FOR

Search across all available documentation for this part.

Active

Amphenol RF

1.0/2.3 STRAIGHT CRIMP JACK FOR

Technical Specifications

Parameters and characteristics for this part

Specification	282102-75

Body Finish	Gold
Body Material	Brass
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Connector, 1 Ferrule, 1 Lockwasher, 1 Contact
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Housing Color	Contact Termination	Fastening Type	Center Contact Plating	Body Finish	Mounting Feature	Body Material	Center Contact Material	Includes	Number of Ports	Shield Termination	Dielectric Material	Frequency - Max [Max]	Impedance	Connector Type	Mating Cycles	Cable Group	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 282102-75	Gold	Solder	Push-Pull	Gold	Gold	Bulkhead - Front Side Nut	Brass	Beryllium Copper	1 Connector 1 Contact 1 Ferrule 1 Lockwasher	1	Crimp	Polytetrafluoroethylene (PTFE)	4 GHz	75 Ohms	Female Socket Jack	500	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	1.0/2.3	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0/2.3 Connector Jack, Female Socket 75 Ohms Panel Mount Solder
