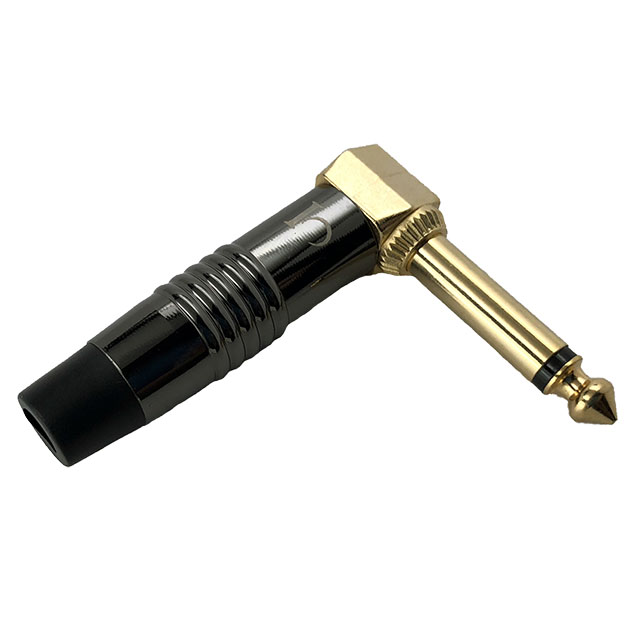

IO-T2MCH-R

Active

IO Audio Technologies

PHONE AUDIO CONNECTOR, R/A, 2 CONTACTS, PLUG, 6.35 MM, CABLE MOUNT, SILVER PLATED CONTACTS

Search across all available documentation for this part.

Active

IO Audio Technologies

PHONE AUDIO CONNECTOR, R/A, 2 CONTACTS, PLUG, 6.35 MM, CABLE MOUNT, SILVER PLATED CONTACTS

Technical Specifications

Parameters and characteristics for this part

Specification	IO-T2MCH-R

Actual Diameter [diameter]	0.25 in
Actual Diameter [diameter]	6.35 mm
Body Color	Gold, Black
Cable Opening [custom]	6.35 mm
Cable Opening [custom]	0.25 in
Connector Type	Phone Plug
Contact Material - Plating [custom]	Gold
Gender	Male
Includes	1 Connector, 1 Handle
Internal Switch(s)	False
Mating Length/Depth [z]	1.213 in
Mating Length/Depth [z]	30.8 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Shielding	Unshielded
Signal Lines	Mono
Termination	Solder Eyelet(s)

PHONE AUDIO CONNECTOR, R/A, 2 CONTACTS, PLUG, 6.35 MM, CABLE MOUNT, SILVER PLATED CONTACTS

Part	Cable Opening [custom]	Cable Opening [custom]	Includes	Internal Switch(s)	Body Color	Mating Length/Depth [z]	Mating Length/Depth [z]	Gender	Contact Material - Plating [custom]	Signal Lines	Mounting Type	Connector Type	Termination	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]
IO Audio Technologies IO-T2MCH-R	6.35 mm	0.25 in	1 Connector, 1 Handle		Black, Gold	1.213 in	30.8 mm	Male	Gold	Mono	Free Hanging (In-Line)	Phone Plug	Solder Eyelet(s)	Unshielded	2	2	0.25 in	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Eyelet(s)
