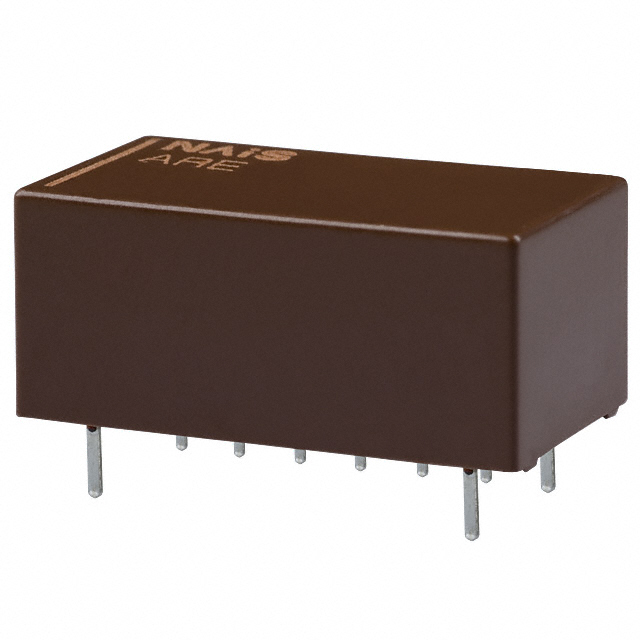

ARE13A24Z

Obsolete

Panasonic Electric Works

RELAY RF SPDT 500MA 24V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY RF SPDT 500MA 24V

Technical Specifications

Parameters and characteristics for this part

Part	Release Time	Coil Resistance	Contact Material	Coil Power	Must Release Voltage	Switching Voltage	Coil Current	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage	Contact Rating (Current)	Termination Style	Contact Form	Coil Type	Operate Time	Mounting Type	Coil Voltage
Panasonic Electric Works ARE13A03Z	5 ms	45 Ohms	Gold Plating	200 mW	0.3 VDC	30 VDC	66.7 mA	-40 °C	70 °C	2.25 VDC	0.5 A	Gull Wing	SPDT (1 Form C)	Non Latching	10 ms	Surface Mount
Panasonic Electric Works ARE13A4H	5 ms	101 Ohms	Gold Plating	200 mW	0.45 VDC	30 VDC	44.4 mA	-40 °C	70 °C	3.38 VDC	0.5 A	Gull Wing	SPDT (1 Form C)	Non Latching	10 ms	Surface Mount	4.5 VDC
Panasonic Electric Works ARE13A4HZ	5 ms	101 Ohms	Gold Plating	200 mW	0.45 VDC	30 VDC	44.4 mA	-40 °C	70 °C	3.38 VDC	0.5 A	Gull Wing	SPDT (1 Form C)	Non Latching	10 ms	Surface Mount	4.5 VDC
Panasonic Electric Works ARE13A12Z	5 ms	720 Ohms	Gold Plating	200 mW	1.2 VDC	30 VDC	16.7 mA	-40 °C	70 °C	9 VDC	0.5 A	Gull Wing	SPDT (1 Form C)	Non Latching	10 ms	Surface Mount	12 VDC
Panasonic Electric Works ARE13A24Z	5 ms	2.88 kOhms	Gold Plating	200 mW	2.4 VDC	30 VDC	8.3 mA	-40 °C	70 °C	18 VDC	0.5 A	Gull Wing	SPDT (1 Form C)	Non Latching	10 ms	Surface Mount	24 VDC
Panasonic Electric Works ARE13A24	5 ms	2.88 kOhms	Gold Plating	200 mW	2.4 VDC	30 VDC	8.3 mA	-40 °C	70 °C	18 VDC	0.5 A	Gull Wing	SPDT (1 Form C)	Non Latching	10 ms	Surface Mount	24 VDC
