30316-5002HB

Active

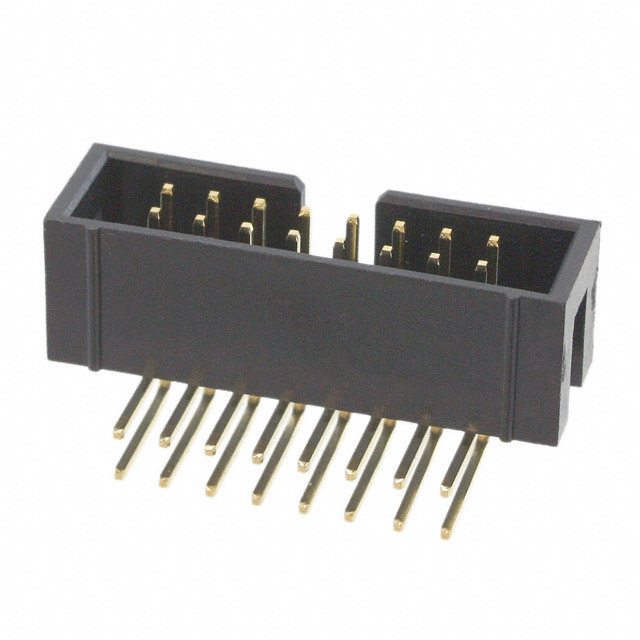

CONN HEADER R/A 16POS 2.54MM

Search across all available documentation for this part.

Active

CONN HEADER R/A 16POS 2.54MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	30316-5002HB	30316 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating	6 mm	6 mm
Contact Length - Mating	0.236 in	0.236 in
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	8.4 mm	8.4 - 9.3 mm
Insulation Height	0.331 in	0.331 - 0.366 in
Insulation Material	Polybutylene Terephthalate (PBT), Polyester, Glass Filled	Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle, Through Hole
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

CONN HEADER R/A 16POS 2.54MM

Part	Pitch - Mating	Pitch - Mating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Fastening Type	Contact Type	Contact Shape	Contact Finish Thickness - Mating	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Style	Shrouding	Contact Finish - Mating	Termination	Number of Positions	Insulation Material	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Material	Contact Length - Post [x]	Contact Length - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Post	Connector Type	Insulation Color
3M 30316-5002HB	0.1 in	2.54 mm	Through Hole, Right Angle	105 ░C	-55 °C	Flash	Push-Pull	Male Pin	Square	Flash	Keying Slot	2.54 mm	0.1 in	2	Board to Board, Cable	Shrouded - 4 Wall	Gold	Solder	16	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	6 mm	0.236 in	UL94 V-0	Brass	0.11 in	2.79 mm	All	8.4 mm	0.331 in	Gold	Header	Black
3M 30316-6002HB	0.1 in	2.54 mm	Through Hole	105 ░C	-55 °C	Flash	Push-Pull	Male Pin	Square	Flash	Keying Slot	2.54 mm	0.1 in	2	Board to Board, Cable	Shrouded - 4 Wall	Gold	Solder	16	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	6 mm	0.236 in	UL94 V-0	Brass	0.11 in	2.79 mm	All	9.3 mm	0.366 in	Gold	Header	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm)
