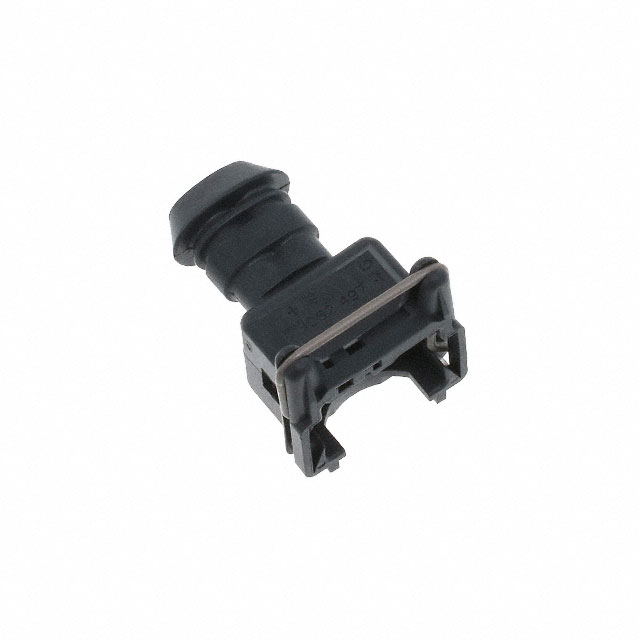

963343-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
963343-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 2POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 963343-1 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.62 | |
| 10 | $ 1.44 | |||
| 25 | $ 1.43 | |||
| 50 | $ 1.42 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.29 | |||
| 500 | $ 1.29 | |||
963343 Series
CONN RCPT HSG 2POS 5.00MM
| Part | Color | Mounting Type | Contact Type | Connector Type | Number of Rows | Pitch [x] | Pitch [x] | Features | Number of Positions | Insulation Material | Note | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 963343-1 | Natural | Free Hanging (In-Line) | Female Socket | Receptacle | 1 | 5 mm | 0.197 in | Sealed | 2 | Polybutylene Terephthalate (PBT), Glass Filled | Contacts Not Included | Crimp | 100 °C | -40 °C |
Description
General part information
963343 Series
2 Rectangular Connectors - Housings Receptacle Natural 0.197" (5.00mm)
Documents
Technical documentation and resources
