10350-C500-00
Active3M

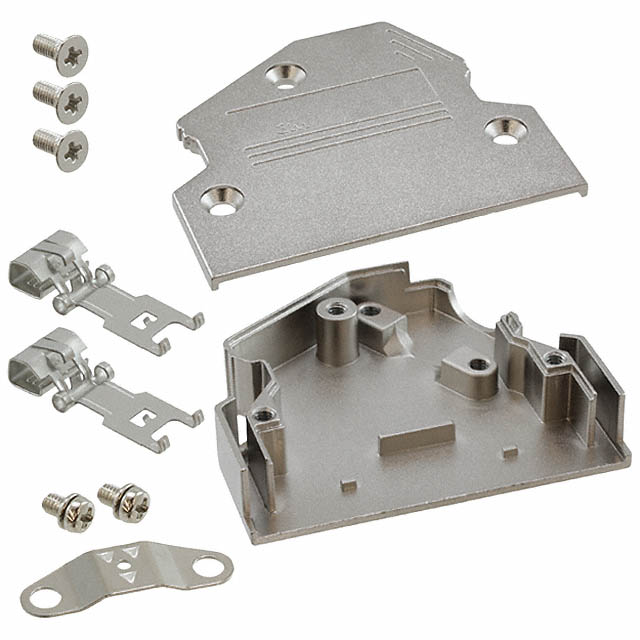

CONN BACKSHELL 50POS 60DEG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10350-C500-00
Active3M
CONN BACKSHELL 50POS 60DEG SHLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10350-C500-00 | 10350 Series |
|---|---|---|
| Accessory Type | Two Piece Backshell | Two Piece Backshell and Cover, Two Piece Backshell |
| Cable Exit | 60 ° | 60 - 180 ° |
| Cable Type | Round | Round, Flat |
| Color | Silver | Beige, Silver, Black, Gray, Gray, Medium |
| Features | Latch Lock | Latch Lock, Mating Screws 4-40 |
| Hardware | - | Assembly Hardware, Gasket, Strain Relief |
| Material | Zinc Alloy | Aluminum, Metal, Zinc, Zinc Alloy, Polybutylene Terephthalate (PBT), Glass Filled, Metal |
| Material | - | Plastic, Steel |
| Material | - | Metal |
| Number of Positions | 50 | 50 |
| Plating | Nickel | Nickel |
| Primary Material | Metal | Metal, Plastic |
| Shielding | Shielded | Shielded, Unshielded |
10350 Series
JE150187431 10350-3280-000-1=50/MDR/PLSHELL/2PC/BEIGE ROHS COMPLIANT: YES
| Part | Number of Positions | Cable Type | Primary Material | Features | Color | Material [custom] | Material [custom] | Accessory Type | Cable Exit | Shielding | Material | Plating | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50 | Round | Metal | Latch Lock | Beige | Plastic, Steel | Metal | Two Piece Backshell and Cover | 180 ° | Shielded | ||||
50 | Round | Metal | Mating Screws 4-40 | Beige | Plastic, Steel | Metal | Two Piece Backshell and Cover | 180 ° | Shielded | ||||
50 | Round | Metal | Latch Lock | Silver | Two Piece Backshell | 180 ° | Shielded | Aluminum | Nickel | ||||
50 | Flat | Metal | Latch Lock | Silver | Two Piece Backshell | 180 ° | Shielded | Metal, Zinc | Nickel | Assembly Hardware, Gasket | |||
50 | Round | Metal | Latch Lock | Silver | Two Piece Backshell | 60 ° | Shielded | Zinc Alloy | Nickel | ||||
50 | Round | Plastic | Latch Lock | Black | Two Piece Backshell | 180 ° | Unshielded | Polybutylene Terephthalate (PBT), Glass Filled | |||||
50 | Round | Metal | Mating Screws 4-40 | Gray | Plastic, Steel | Metal | Two Piece Backshell and Cover | 180 ° | Shielded | ||||
50 | Round | Metal | Latch Lock | Silver | Two Piece Backshell | 180 ° | Shielded | Zinc Alloy | Nickel | ||||
50 | Round | Metal | Latch Lock | Black | Plastic, Steel | Metal | Two Piece Backshell and Cover | 180 ° | Shielded | ||||
50 | Round | Metal | Latch Lock | Silver | Two Piece Backshell | 180 ° | Shielded | Metal, Zinc Alloy | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.54 | |
| 10 | $ 14.29 | |||
| 25 | $ 12.93 | |||
| 50 | $ 12.01 | |||
| 100 | $ 11.18 | |||
| 250 | $ 10.66 | |||
Description
General part information
10350 Series
50 Position Two Piece Backshell Connector Silver 60° Shielded
