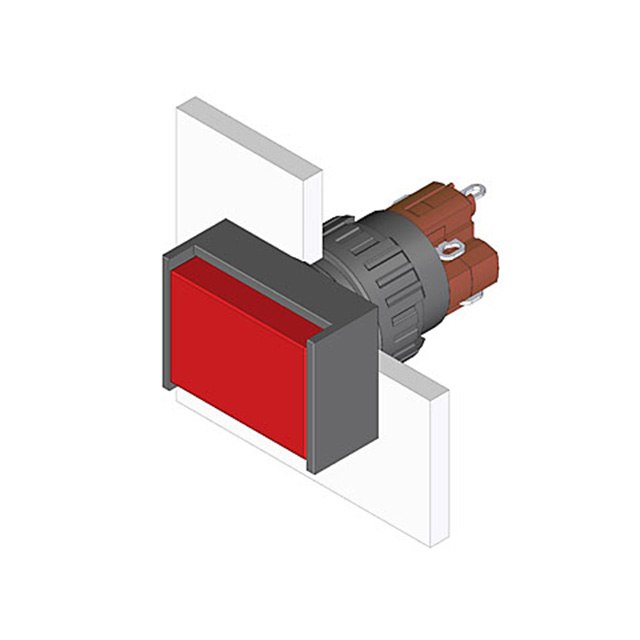

51-261.025
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
51-261.025
ActiveEAO
SWITCH PB DPST-NO/NC 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 51-261.025 | 51-261 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking |
| Actuator Type | Rectangular, Button (Not Included) | Rectangular, Button (Not Included) |
| Circuit | DPST-NO/NC | DPST-NO/NC |
| Current Rating (Amps) | 5 A | 5 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Mounting Type | Panel Mount, Front | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 16 mm | 16 mm |
| Switch Function | On-Off, Off-On | On-Off, Off-On |
| Termination Style | Solder Lug | Solder Lug, Quick Connect, Solder |
| Termination Style | - | 0.11 in |
| Termination Style | - | 2.8 mm |
| Type | Standard | Standard |
| Voltage Rating - AC | 250 V | 250 V |
51-261 Series
SWITCH PB DPST-NO/NC 5A 250V
| Part | Termination Style | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Type | Ingress Protection | Mechanical Life | Mounting Type | Current Rating (Amps) | Voltage Rating - AC | Type | Actuator Marking | Switch Function | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 51-261.025 | Solder Lug | 16 mm | 55 °C | -25 °C | DPST-NO/NC | Rectangular, Button (Not Included) | IP65 - Dust Tight, Water Resistant | 1000000 Cycles | Panel Mount, Front | 5 A | 250 V | Standard | No Marking | Off-On, On-Off | ||
EAO 51-261.022 | Quick Connect, Solder | 16 mm | 55 °C | -25 °C | DPST-NO/NC | Rectangular, Button (Not Included) | IP65 - Dust Tight, Water Resistant | 1000000 Cycles | Panel Mount, Front | 5 A | 250 V | Standard | No Marking | Off-On, On-Off | 0.11 in | 2.8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.02 | |
| 10 | $ 36.25 | |||
| 25 | $ 34.17 | |||
| 50 | $ 32.67 | |||
| 100 | $ 31.24 | |||
| 250 | $ 29.44 | |||
Description
General part information
51-261 Series
Pushbutton Switch DPST-NO/NC Standard Panel Mount, Front
