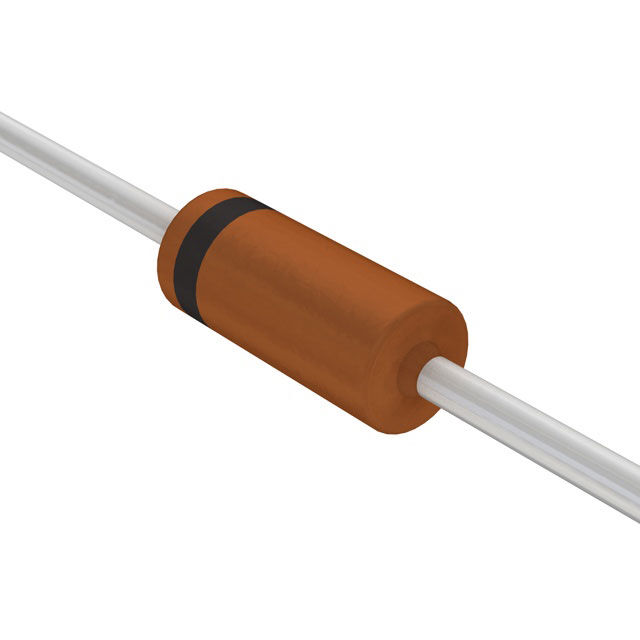

1N4148,113

Active

NXP USA Inc.

DIODE STANDARD 100V 200MA ALF2

Search across all available documentation for this part.

Active

NXP USA Inc.

DIODE STANDARD 100V 200MA ALF2

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1N4148,113	1N4148 Series

Capacitance @ Vr, F	4 pF	4 pF
Current - Average Rectified (Io)	200 mA	200 mA
Current - Reverse Leakage @ Vr	25 nA	25 nA
Mounting Type	Through Hole	Through Hole
Operating Temperature - Junction	200 °C	200 °C
Package / Case	Axial, DO-35, DO-204AH	Axial, DO-35, DO-204AH
Reverse Recovery Time (trr)	4 ns	4 ns
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	ALF2	ALF2
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V	100 V
Voltage - Forward (Vf) (Max) @ If	1 V	1 V

DIODE GEN PURP 100V 200MA ALF2

Part	Supplier Device Package	Current - Average Rectified (Io)	Speed	Speed	Technology	Package / Case	Reverse Recovery Time (trr)	Operating Temperature - Junction	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Mounting Type	Capacitance @ Vr, F	Voltage - Forward (Vf) (Max) @ If
NXP USA Inc. 1N4148,143	ALF2	200 mA	Any Speed	200 mA	Standard	Axial, DO-204AH, DO-35	4 ns	200 °C	100 V	25 nA	Through Hole	4 pF	1 V
NXP USA Inc. 1N4148,133	ALF2	200 mA	Any Speed	200 mA	Standard	Axial, DO-204AH, DO-35	4 ns		100 V	25 nA	Through Hole	4 pF	1 V
NXP USA Inc. 1N4148,113	ALF2	200 mA	Any Speed	200 mA	Standard	Axial, DO-204AH, DO-35	4 ns	200 °C	100 V	25 nA	Through Hole	4 pF	1 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 100 V 200mA Through Hole ALF2
