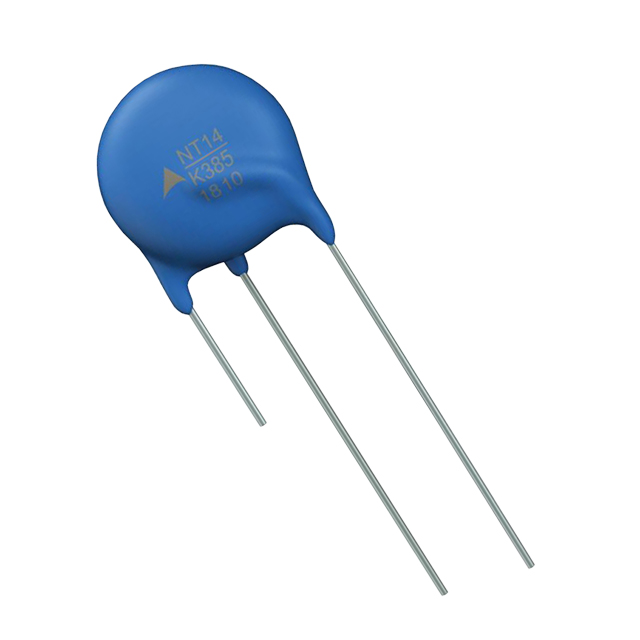

B72220W2271K101

Active

EPCOS - TDK Electronics

VARISTOR 430V 10KA DISC 23MM

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 430V 10KA DISC 23MM

Technical Specifications

Parameters and characteristics commom to parts in this series

VARISTOR 430V 10KA DISC 23MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Maximum AC Volts [Max]	Current - Surge	Varistor Voltage (Typ)	Energy	Varistor Voltage (Min) [Min]	Varistor Voltage (Max) [Max]	Number of Circuits	Maximum DC Volts [Max]	Capacitance @ Frequency	Varistor Voltage (Max)
EPCOS - TDK Electronics B72220W2271K101	85 °C	-40 °C	Through Hole	Disc 23mm	275 V	10 kA	430 V	215 J	387 V	473 V	1	350 V	850 pF
EPCOS - TDK Electronics B72220W2131K101	85 °C	-40 °C	Through Hole	Disc 23mm	130 V	10 kA	205 V	100 J	184.5 V		1	170 V	1850 pF	225.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

430 V 10 kA Varistor 1 Circuit Through Hole Disc 23mm
