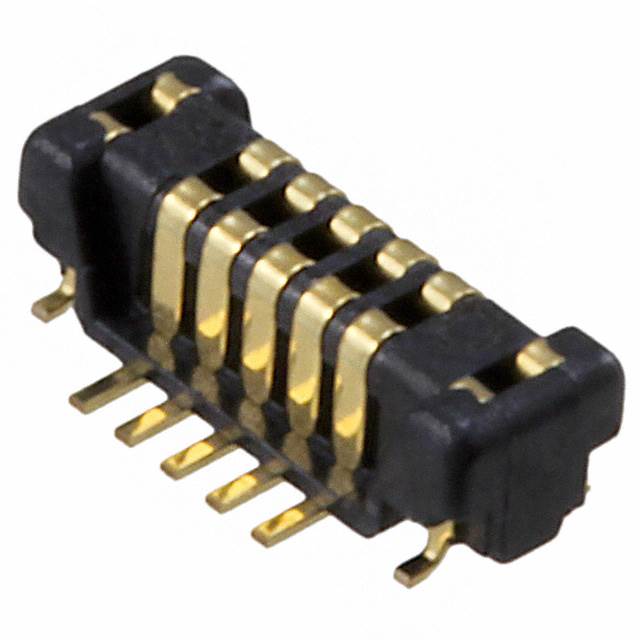

AXT4E1026

Active

Panasonic Electric Works

CONN HDR 10POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT4E1026

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	2.5 mm, 1.5 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mated Stacking Heights	Connector Type	Height Above Board	Height Above Board	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions
Panasonic Electric Works AXT4E1066	1.5 mm 2.5 mm	Header Center Strip Contacts	0.049 in	1.25 mm	Surface Mount	Gold	0.016 in	0.4 mm	2	10
Panasonic Electric Works AXT4E1026	1.5 mm 2.5 mm	Header Center Strip Contacts	0.049 in	1.25 mm	Surface Mount	Gold	0.016 in	0.4 mm	2	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.73
	Digi-Reel®	1	$ 2.73
	Tape & Reel (TR)	50	$ 2.29

General part information

10 Position Connector Header, Center Strip Contacts Surface Mount Gold
