| Accessory Type | - | Collet, Collet Set, Back-Nut |
| Applications | - | Audio |
| Backshell Material, Plating | - | Brass, Chrome, Acetal, Polyoxymethylene (POM), Black Chrome, Aluminum, Nickel |
| Body Finish | Nickel | Nickel, Chrome |
| Body Material | Brass | Brass |
| Cable Group | RG-174A | RG-174A, 400, 223, 187A, 179B, RG-58C, 302, 59B, RG-316, 174A, 188A, 196A, 316B, 178B, RG-122, 174, 178, RG-174, 8232A, 9267, 9222, Belden 8215, 165, 115A, RG-11A, 213, 144, Belden 9222, RG-179B, 214, 225, 216, 187, 179, 188, 316, Belden 9267, RG-179, RG-178B, RG-225, RG-216, RG-214, 12A, 8233A |
| Cable Opening | - | 0.087 - 0.512 in |
| Cable Opening | - | 0.051 - 0.496 in |
| Cable Opening | - | 0.165 - 12.6 mm |
| Cable Opening | - | 0.224 - 12 mm |
| Cable Opening | - | 0.047 - 0.472 in |
| Cable Opening | - | 2 - 12 mm |
| Cable Opening | - | 0.039 - 0.417 in |
| Cable Opening | - | 1 - 10.6 mm |
| Cable Opening | - | 2.5 - 13 mm |
| Cable Opening | - | 0.165 - 0.205 in |
| Cable Opening | - | 0.181 - 8.7 mm |
| Cable Opening | - | 5.1 - 9.7 mm |
| Cable Opening | - | 0.205 - 0.413 in |
| Cable Opening | - | 0.232 - 13 mm |
| Cable Opening | - | 0.055 - 0.512 in |
| Cable Opening | - | 4 - 14 mm |
| Cable Opening | - | 1.2 - 10 mm |
| Cable Opening | - | 0.051 - 0.382 in |
| Cable Opening | - | 8.8 - 10.1 mm |
| Cable Opening | - | 0.346 - 0.398 in |
| Cable Opening | - | 10.5 mm |
| Cable Opening | - | 0.382 - 0.413 in |
| Cable Opening | - | 9.7 mm |
| Center Contact Material | Brass | Brass, Beryllium Copper, Bronze |
| Center Contact Plating | Gold | Gold |
| Color | - | Silver, Black |

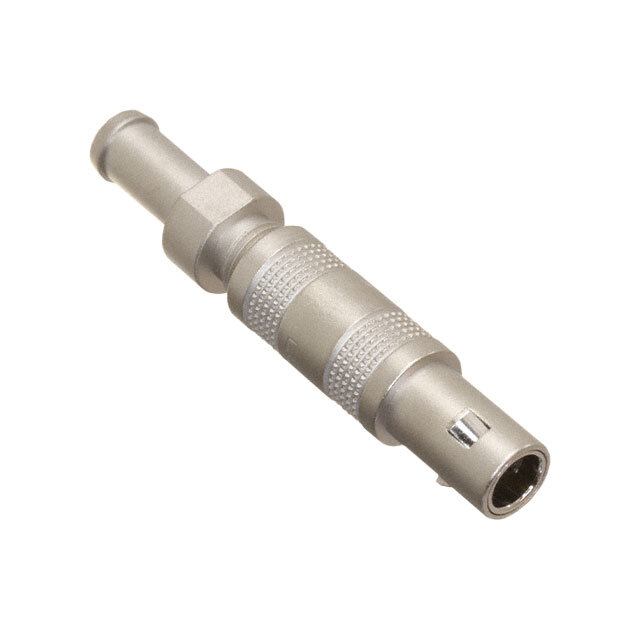

| Connector Style | NIM-CAMAC CD/N 549 | NIM-CAMAC CD/N 549, Coaxial, Triaxial, Triax |
| Connector Type | Male Pin, Plug | Male Pin, Plug, Male Pins, Female Sockets, Insert Shell, Female Socket, Insert |
| Contact Finish | - | Gold |
| Contact Finish - Mating | - | Gold |
| Contact Finish Thickness | - | 39.4 Áin |
| Contact Finish Thickness | - | 1 Ám |
| Contact Finish Thickness - Mating | - | 39.4 - 78.7 Áin |
| Contact Finish Thickness - Mating | - | 1 - 2 Ám |
| Contact Material | - | Bronze, Brass, Beryllium Copper |
| Contact Termination | Solder | Solder, Crimp |
| Current Rating (Amps) | - | 3 - 65 A |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull | Push-Pull, Detent Lock |
| Features | - | Backshell, Insert Only, Requires Shell |
| For Use With/Related Products | - | 0S Series Connector, 3S, 3Y Series Connector, 2C Series Plug, 1Y Series Connector, 0S, 1S, 0E Series Connector, 3E, 2K, 3K, 2E, 1S Series Connector, 5K Series Connector, 5E, 2K Series Connector, 2S Series Connector, 1K, 1E, 3E, 3K Series Connector, 4E, 4K Series Connector, 0E, 0K Series Connector, 3S Series Connector, 00 Series Connector, 1E, 1K Series Connector, 3K Series Connector, S Series, 1K Series Connector, 2S, 3S, 3Y Series Connector |
| Frequency - Max | - | 1.2 - 3.4 GHz |
| Housing Color | Silver | Silver, Natural, Black |
| Impedance | 50 Ohms | 50 - 75 Ohms |
| Ingress Protection | IP50 | IP50, IP68 - Dust Tight, Waterproof, IP66/IP68, IP66 |
| Insert Material | - | Polyetheretherketone (PEEK), Fluorinated Ethylene Propylene (FEP), Polytetrafluoroethylene (PTFE), Polybutylene Terephthalate (PBT) |
| Material | - | Brass |
| Material Flammability Rating | - | UL94 V-0 |
| Mating Cycles | 5000 | 1000 - 5000 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | - | Contacts Not Included; Insert Not Included |
| Number of Ports | 1 | 1 |
| Number of Positions | - | 1 - 60 |
| Number of Positions | - | 7 |
| Number of Positions | - | 1 - 2 |
| Number of Positions | - | 8 |
| Number of Positions | - | 16 |
| Number of Positions | - | 4 - 5 |
| Operating Temperature [Max] | 260 ░C | 120 - 260 ░C |
| Operating Temperature [Min] | -55 °C | -55 - -40 °C |
| Orientation | - | Keyed, A |
| Pin or Socket | - | Pin |
| Primary Material | - | Metal, Plastic |
| Shell Finish | - | Chrome, Nickel |
| Shell Material | - | Brass, Polyoxymethylene (POM), Acetal, Aluminum |
| Shell Size - Insert | - | 113 - 834 |
| Shield Termination | Clamp | Clamp, Crimp |
| Shielding | - | Shielded, Unshielded |
| Termination | - | Crimp |
| Voltage Rating | 700 VDC | 700 VDC |
