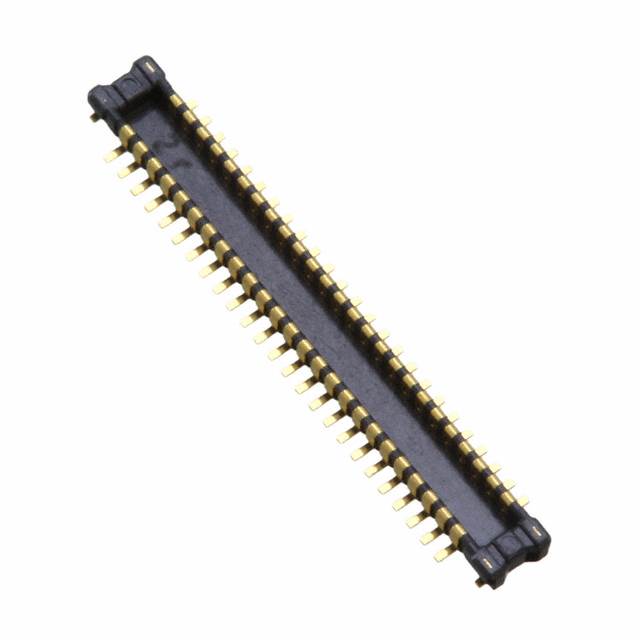

AXE6E5026

Active

Panasonic Electric Works

CONN HDR 50POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE6E5026

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Solder Retention
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	50
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Number of Rows	Mated Stacking Heights	Contact Finish Thickness	Mounting Type	Features	Contact Finish
Panasonic Electric Works AXE6E5026	50	0.016 in	0.4 mm	Header Outer Shroud Contacts	2	0.8 mm	Flash	Surface Mount	Solder Retention	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	50	$ 4.56

General part information

50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
