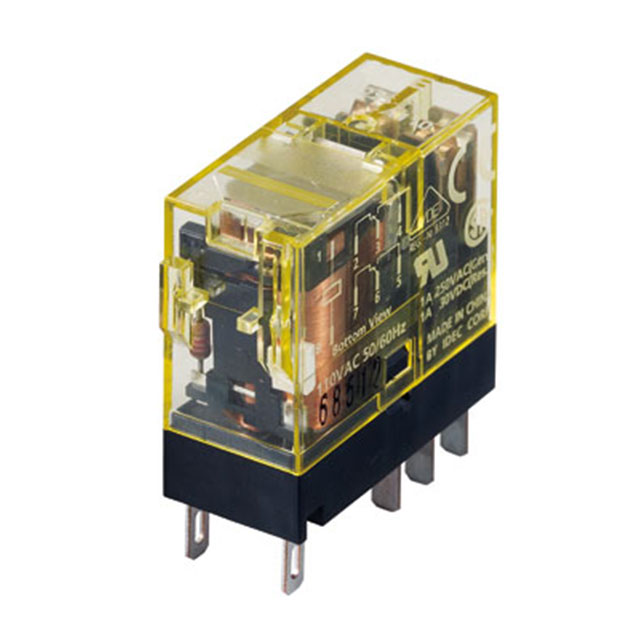

RJ22S-C-A120

Active

IDEC Corporation

BIFURCATED RELAY DPDT AC120 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RJ22S-C-A120

Active

IDEC Corporation

BIFURCATED RELAY DPDT AC120 ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RJ22S-C-A120	RJ22S-C Series

Approval Agency	CE, VDE, cURus, CSA	CE, VDE, cURus, CSA
Coil Current	7.5 mA	5.2 - 75 mA
Coil Resistance	6.4 kOhms	6.4 - 271 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	120 VAC	12 - 120 VAC/DC
Coil Voltage	-	110 VDC
Coil Voltage	-	100 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi), Gold (Au)	Silver Nickel (AgNi), Gold (Au)
Contact Rating (Current)	1 A	1 A
Features	-	Test Button, Lighted Indicator, RC Circuit, Diode
Load - Max Switching	30 W, 250 VA	30 - 250 VA
Mounting Type	Socketable	Socketable
Must Operate Voltage	96 VAC	8.4 - 96 VAC/DC
Must Release Voltage	36 VAC	1.2 - 36 VAC
Operate Time	15 ms	15 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	10 ms	10 ms
Switching Voltage	-	125 - 250 VAC
Switching Voltage [Max]	30 VDC, 250 VAC	30 - 250 VDC
Termination Style	Plug In	Plug In

RJ22S-C Series

BIFURCATED RELAY DPDT RC ROHS COMPLIANT: YES

Part	Coil Current	Release Time	Features	Coil Type	Load - Max Switching	Approval Agency	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Relay Type	Must Operate Voltage	Coil Voltage	Contact Form	Termination Style	Contact Material	Operate Time	Must Release Voltage	Coil Resistance	Mounting Type	Coil Voltage [Max]	Coil Voltage [Min]	Switching Voltage [Max]
IDEC Corporation RJ22S-CR-A12	75 mA	10 ms	Test Button	Non Latching	125 W, 250 VA	CE, CSA, cURus, VDE	1 A	-40 °C	70 °C	125 VDC, 250 VAC	General Purpose	9.6 VAC/DC	12 VAC/DC	DPDT (2 Form C)	Plug In	Gold (Au), Silver Nickel (AgNi)	15 ms	3.6 VAC	62.5 Ohms	Socketable
IDEC Corporation RJ22S-C-D12	44.2 mA	10 ms		Non Latching	125 W, 250 VA	CE, CSA, cURus, VDE	1 A	-40 °C	70 °C	125 VDC, 250 VAC	General Purpose	8.4 VDC	12 VDC	DPDT (2 Form C)	Plug In	Gold (Au), Silver Nickel (AgNi)	15 ms	1.2 VDC	271 Ohms	Socketable
IDEC Corporation RJ22S-CLR-A24	41.4 mA	10 ms	Lighted Indicator, RC Circuit	Non Latching	125 W, 250 VA	CE, CSA, cURus, VDE	1 A	-40 °C	70 °C	125 VDC, 250 VAC	General Purpose	19.2 VAC	24 VAC	DPDT (2 Form C)	Plug In	Gold (Au), Silver Nickel (AgNi)	15 ms	7.2 VAC	243 Ohms	Socketable
IDEC Corporation RJ22S-CLD-D100	5.2 mA	10 ms	Diode, Lighted Indicator	Non Latching	125 W, 250 VA	CE, CSA, cURus, VDE	1 A	-40 °C	70 °C	125 VDC, 250 VAC	General Purpose			DPDT (2 Form C)	Plug In	Gold (Au), Silver Nickel (AgNi)	15 ms		18.87 kOhms	Socketable	110 VDC	100 VDC
IDEC Corporation RJ22S-C-A12	75 mA	10 ms		Non Latching	125 W, 250 VA	CE, CSA, cURus, VDE	1 A	-40 °C	70 °C	125 VDC, 250 VAC	General Purpose	9.6 VAC/DC	12 VAC/DC	DPDT (2 Form C)	Plug In	Gold (Au), Silver Nickel (AgNi)	15 ms	3.6 VAC	62.5 Ohms	Socketable
IDEC Corporation RJ22S-C-D100	5.3 mA	10 ms		Non Latching	125 W, 250 VA	CE, CSA, cURus, VDE	1 A	-40 °C	70 °C	125 VDC, 250 VAC	General Purpose			DPDT (2 Form C)	Plug In	Gold (Au), Silver Nickel (AgNi)	15 ms		18.87 kOhms	Socketable	110 VDC	100 VDC
IDEC Corporation RJ22S-C-A120	7.5 mA	10 ms		Non Latching	30 W, 250 VA	CE, CSA, cURus, VDE	1 A	-40 °C	70 °C		General Purpose	96 VAC	120 VAC	DPDT (2 Form C)	Plug In	Gold (Au), Silver Nickel (AgNi)	15 ms	36 VAC	6.4 kOhms	Socketable			30 VDC, 250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.95
		10	$ 12.40
		100	$ 10.54
		1000	$ 8.53
Newark	Each	1	$ 14.49
		5	$ 13.70
		10	$ 12.04
		25	$ 10.81
		50	$ 10.14
		100	$ 9.58
		250	$ 9.03

Description

General part information

RJ22S-C Series

General Purpose Relay DPDT (2 Form C) Socketable
