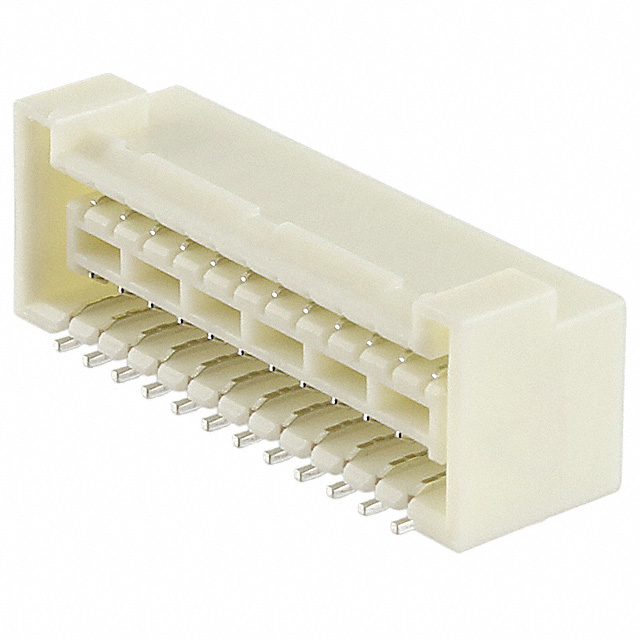

SM24B-ZPDSS-TF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 24POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 24POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM24B-ZPDSS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.309 in
Insulation Height	7.85 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating	Contact Shape	Number of Positions	Insulation Material	Contact Type	Contact Material	Shrouding	Mounting Type	Material Flammability Rating	Connector Type	Insulation Height	Insulation Height	Termination	Insulation Color	Style	Fastening Type	Number of Positions Loaded	Contact Finish - Post
JST Sales America Inc. SM24B-ZPDSS-TF	2	-25 °C	85 °C	2 A	100 V	Rectangular	24	Nylon Polyamide (PA)	Outer Shroud Contact	Copper Alloy	Shrouded - 4 Wall	Surface Mount Right Angle	UL94 V-0	Header	0.309 in	7.85 mm	Solder	Natural	Board to Cable/Wire	Locking Ramp	All	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 24 position 0.059" (1.50mm)
