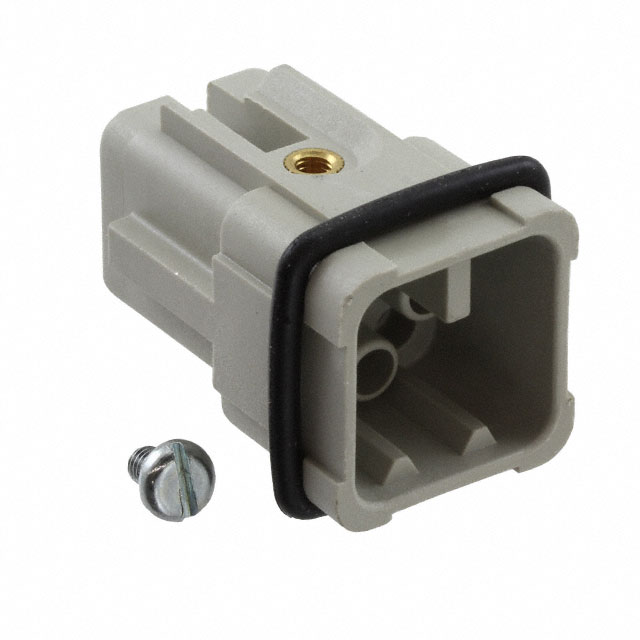

C14610A0080002

Active

Amphenol Tuchel Industrial

INSERT MALE 8POS CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 8POS CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A0080002

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C146 D, C 16-3, M, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Male
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	A3/4
Termination Style	Crimp
Voltage Rating	600 V

Part	Gender	Voltage Rating	Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination Style	Size	Connector Type	Current Rating (Amps)	Housing Material	Color
Amphenol Tuchel Industrial C14610A0080002	Male	600 V	C 16-3 C146 D heavy\|mate® M	8	125 °C	-40 °C	UL94 V-0	Crimp	A3/4	Insert without Contacts	15 A	Polybutylene Terephthalate (PBT) Polyester	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 8 Position Crimp
