333-024-558-112
ActiveEDAC Inc.

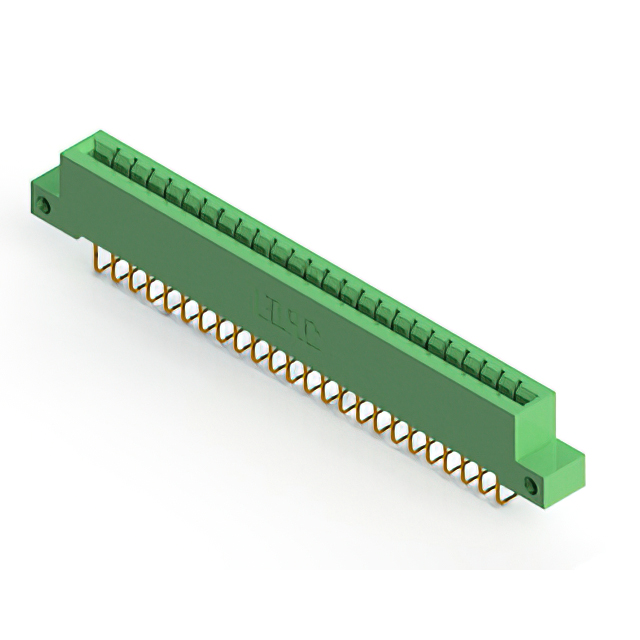

CONN EDGE SGL FMALE 24POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-024-558-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 24POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-024-558-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 24 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
333-024 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Number of Rows | Card Type | Read Out | Gender | Contact Type | Features | Mounting Type | Number of Positions | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Material - Insulation | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | 12 | 0.156 in | 3.96 mm | 2 | Non Specified - Dual Edge | Dual | Female | Cantilever | Card Extender | Board Edge Straddle Mount | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | ||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | 12 | 0.156 in | 3.96 mm | 2 | Non Specified - Dual Edge | Dual | Female | Cantilever | Card Extender | Board Edge Straddle Mount | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | 1 | 24 | 0.156 in | 3.96 mm | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Through Hole | 24 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | 3.25 mm | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | 12 | 0.156 in | 3.96 mm | 2 | Non Specified - Dual Edge | Dual | Female | Cantilever | Through Hole Right Angle | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Flush Mount | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | 2.95 mm | 0.116 in | |
EDAC Inc. | 10 Áin | 0.25 Ám | 1 | 24 | 0.156 in | 3.96 mm | 1 | Non Specified - Single Edge | Single | Female | Cantilever | Through Hole Right Angle | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | 3.25 mm | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | 12 | 0.156 in | 3.96 mm | 2 | Non Specified - Dual Edge | Dual | Female | Cantilever | Through Hole | 24 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | 3.25 mm | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | 12 | 0.156 in | 3.96 mm | 2 | Non Specified - Dual Edge | Dual | Female | Cantilever | Through Hole Right Angle | 24 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | 3.25 mm | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | 12 | 0.156 in | 3.96 mm | 2 | Non Specified - Dual Edge | Dual | Female | Cantilever | Through Hole | 24 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | 3.25 mm | 0.128 " | |
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | 12 | 0.156 in | 3.96 mm | 2 | Non Specified - Dual Edge | Dual | Female | Cantilever | Through Hole | 24 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | |||
EDAC Inc. | 10 Áin | 0.25 Ám | 2 | 12 | 0.156 in | 3.96 mm | 2 | Non Specified - Dual Edge | Dual | Female | Cantilever | Through Hole | 24 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Polyester Thermoplastic | Copper Alloy | -40 °C | 105 ░C | Gold | Green | 3.96 mm | 0.156 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 11.73 | |
Description
General part information
333-024 Series
24 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
