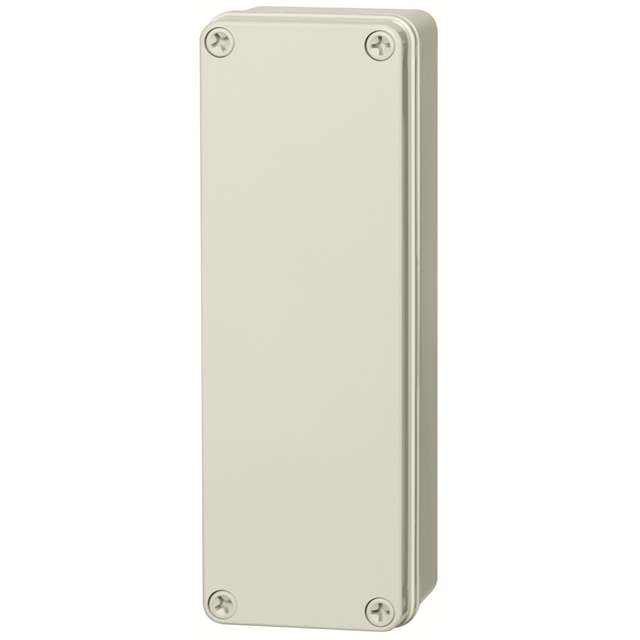

UL PC F 85 G

Active

FIBOX Enclosures

BOX PLASTIC GRAY 9.1"L X 3.1"W

Search across all available documentation for this part.

Active

FIBOX Enclosures

BOX PLASTIC GRAY 9.1"L X 3.1"W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Gray Cover Included 9.100" L x 3.100" W (231.14mm x 78.74mm) X 3.300" (83.82mm)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	UL PC F 85 G	UL PC F Series

Area (L x W)	28.2 in˛	28.2 - 182 in˛
Area (L x W)	182 cm˛	182 cm˛
Area (L x W)	-	28.2 in²
Color	Gray	Gray, Clear Cover/Door
Container Type	Box	Box
Design	Cover Included	Cover Included
Height [z]	83.82 mm	66.04 - 83.82 mm
Height [z]	3.3 in	3.3 - 66.04 mm
Material	Plastic, Polycarbonate	Plastic, Polycarbonate
Ratings	IP67, IP66, UL 508	IP67, IP66, NEMA 4, NEMA 12, NEMA 4X, NEMA 1, UL 508, NEMA 13
Size / Dimension [x]	9.1 in	9.1 in
Size / Dimension [x]	231.14 mm	231.14 mm
Size / Dimension [y]	3.1 in	3.1 in
Size / Dimension [y]	78.74 mm	78.74 mm

BOX PLASTIC GRAY 9.1"L X 3.1"W

Part	Area (L x W)	Area (L x W)	Design	Material	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Color	Height [z]	Height [z]	Area (L x W)
FIBOX Enclosures UL PC F 65 G	28.2 in˛	182 cm˛	Cover Included	Plastic, Polycarbonate	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	3.1 in	9.1 in	78.74 mm	231.14 mm	Box	Gray	66.04 mm	66.04 mm
FIBOX Enclosures UL PC F 85 T	182 cm²		Cover Included	Plastic, Polycarbonate	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	3.1 in	9.1 in	78.74 mm	231.14 mm	Box	Clear Cover/Door, Gray	83.82 mm	3.3 in	28.2 in²
FIBOX Enclosures UL PC F 65 T	28.2 in˛	182 cm˛	Cover Included	Plastic, Polycarbonate	IP66, IP67, NEMA 1, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, UL 508	3.1 in	9.1 in	78.74 mm	231.14 mm	Box	Clear Cover/Door, Gray	66.04 mm	66.04 mm
FIBOX Enclosures UL PC F 85 G	28.2 in˛	182 cm˛	Cover Included	Plastic, Polycarbonate	IP66, IP67, UL 508	3.1 in	9.1 in	78.74 mm	231.14 mm	Box	Gray	83.82 mm	3.3 in
