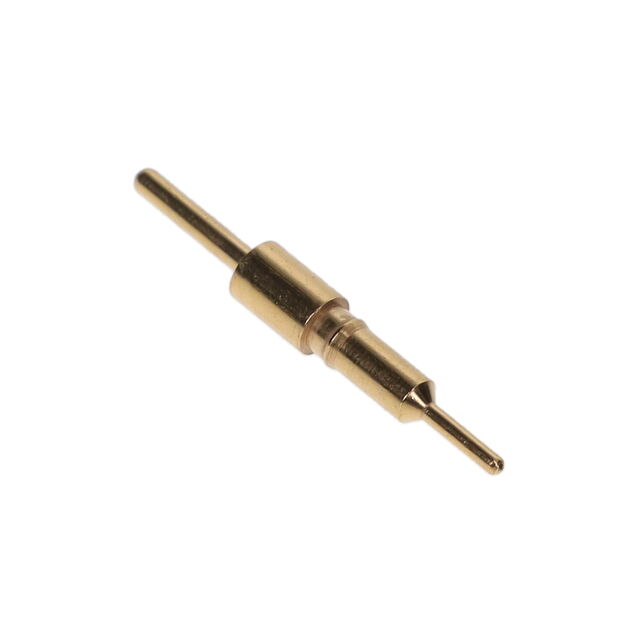

3401-0-00-21-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN .053DIA .1 SHOULDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3401-0-00-21-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.83 mm |
| Flange Diameter [diameter] | 0.072 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.169 in |
| Length - Above Flange [x] | 4.29 mm |
| Length - Below Flange [x] | 6.63 mm |
| Length - Below Flange [x] | 0.261 in |
| Length - Overall [x] | 0.53 in |
| Length - Overall [x] | 13.46 mm |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Pin Size - Below Flange [diameter] | 0.51 mm |
| Pin Size - Below Flange [diameter] | 0.02 in |
| Terminal Style | Double End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.25 | |
| 10 | $ 1.06 | |||
| 25 | $ 1.01 | |||
| 50 | $ 0.99 | |||
| 100 | $ 0.95 | |||
| 250 | $ 0.86 | |||
| 500 | $ 0.78 | |||
| 1000 | $ 0.69 | |||
| 3000 | $ 0.63 | |||
Description
General part information
3401-0 Series
PC Pin Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
