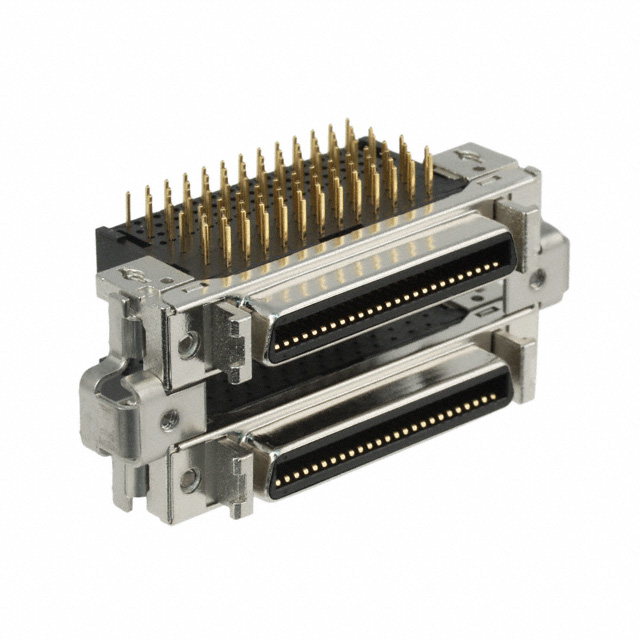

3M MINI D RIBBON (MDR) CONNECTORS, 102 SERIES, 10250-M218PE

Search across all available documentation for this part.

Active

3M MINI D RIBBON (MDR) CONNECTORS, 102 SERIES, 10250-M218PE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	10250-M218PE	10250 Series

	-	-
Connector Style	Outer Shroud Contacts	Outer Shroud Contacts
Connector Type	Stacked	Receptacle, Stacked
Connector Type	2 Plugs	2 Plugs
Contact Finish	Gold	Gold
Contact Finish Thickness	0.51 µm	0.2 - 0.76 Ám
Contact Finish Thickness	20 µin	7.87 - 30 Áin
Features	Shielded	Shielded, Board Lock, Board Guide
Flange Feature	Housing/Shell	Housing/Shell, Latchblocks, Housing/Shell (M2.5), Housing/Shell (4-40)
Flange Feature	2.6 M	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle, Free Hanging (In-Line), Surface Mount, Right Angle, Through Hole, Right Angle
Number of Positions	50	50
Number of Rows	2	2
Termination	Solder	Solder, IDC, Press-Fit

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN RCPT 50POS PCB SOLDER

Part	Flange Feature	Flange Feature	Connector Style	Features	Number of Rows	Connector Type	Number of Positions	Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type
3M 10250-6202VC	Housing/Shell	2.6 M	Outer Shroud Contacts	Shielded	2	Receptacle	50	Solder	Gold	0.76 Ám	30 Áin	Panel Mount, Through Hole
3M 10250-L219VE			Outer Shroud Contacts		2	Receptacle	50
3M 10250-6212PL	Housing/Shell (M2.5), Latchblocks		Outer Shroud Contacts	Shielded	2	Receptacle	50	Solder	Gold	0.2 µm	7.87 µin	Panel Mount, Through Hole
3M 10250-55F3PC	Housing/Shell	2.6 M	Outer Shroud Contacts	Board Lock, Shielded	2	Receptacle	50	Solder	Gold	0.76 Ám	30 Áin	Panel Mount, Right Angle, Through Hole
3M 10250-55F3PC
3M 10250-0210EC	Housing/Shell	2.6 M	Outer Shroud Contacts	Shielded	2	Receptacle	50	IDC	Gold	0.76 Ám	30 Áin	Free Hanging (In-Line)
3M 10250-0210EC
3M 10250-55H3VC	Housing/Shell (4-40), Latchblocks		Outer Shroud Contacts	Board Lock, Shielded	2	Receptacle	50	Solder	Gold	0.76 Ám	30 Áin	Panel Mount, Right Angle, Through Hole
3M 10250-55G3PC	Housing/Shell	2.6 M	Outer Shroud Contacts	Board Lock, Shielded	2	Receptacle	50	Solder	Gold	0.76 Ám	30 Áin	Panel Mount, Right Angle, Through Hole
3M 10250-M218PE	Housing/Shell	2.6 M	Outer Shroud Contacts	Shielded	2	Stacked	50	Solder	Gold	0.51 µm	20 µin	Panel Mount, Right Angle, Through Hole	2 Plugs

General part information

50, 50 Position Stacked, 2 Receptacles Connector Panel Mount, Through Hole, Right Angle Solder
