CBD-08PMMP-SC7001

Active

Amphenol LTW

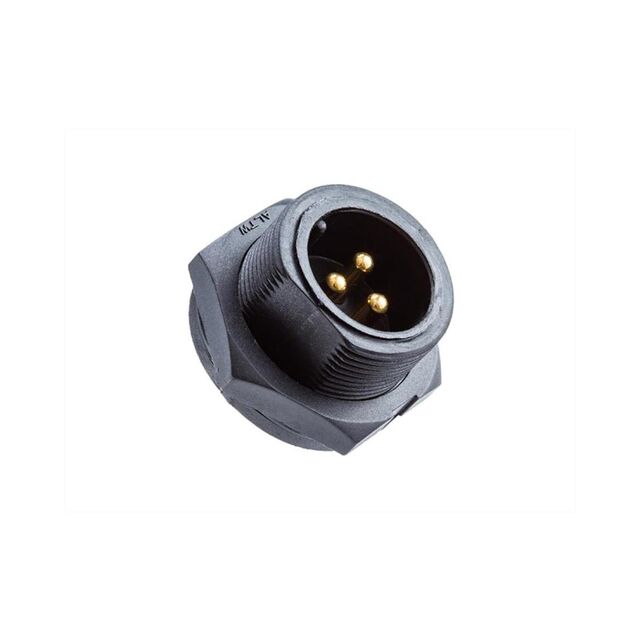

CERES, MIDDLE SIZE, 10A+5A, 08 P

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MIDDLE SIZE, 10A+5A, 08 P

Technical Specifications

Parameters and characteristics for this part

Specification	CBD-08PMMP-SC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5A, 10A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions [custom]	3
Number of Positions [custom]	5
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Termination	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insert Material	Shell Material	Fastening Type	Orientation	Mounting Feature	Connector Type	Primary Material	Current Rating (Amps)	Shell Size - Insert	Contact Material	Ingress Protection	Number of Positions [custom]	Number of Positions [custom]	Shielding	Color
Amphenol LTW CBD-08PMMP-LC7001	250 VDC	Solder	Gold	-40 °C	105 ░C	Panel Mount Through Hole	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	Bayonet Lock	Keyed	Bulkhead - Front Side Nut	Male Pins Receptacle	Plastic	10A 5A	C	Copper Alloy	IP67 - Dust Tight Waterproof	3	5	Unshielded	Black
Amphenol LTW CBD-08PMMP-SC7001	250 VDC	Solder	Gold	-40 °C	105 ░C	Panel Mount Through Hole	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)		Keyed	Bulkhead - Front Side Nut	Male Pins Receptacle	Plastic	10A 5A	C	Copper Alloy	IP67 - Dust Tight Waterproof	3	5	Unshielded	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.01

General part information

8 (5 Data + 3 Power) Position Circular Connector Receptacle, Male Pins Solder
