3305-2-15-15-47-27-10-0
ActiveMill-Max Manufacturing Corp.
.155" LONG RECEPTACLE; ACCEPTS .

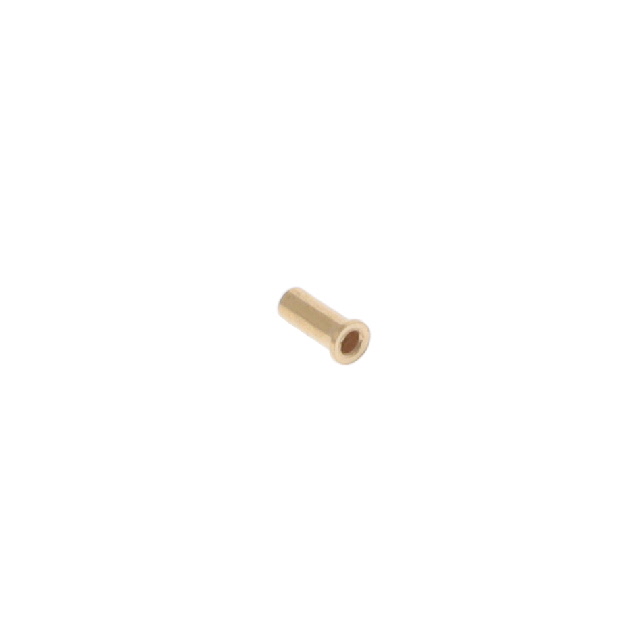

3305-2-15-15-47-27-10-0
ActiveMill-Max Manufacturing Corp.
.155" LONG RECEPTACLE; ACCEPTS .
Description
General part information
3305-2 Series
Pin Receptacle Connector 0.025" ~ 0.037" (0.64mm ~ 0.94mm) No Tail Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 3305-2-15-15-47-27-10-0 |
|---|---|
| Accepts Pin Diameter (Max) | 0.037 in |
| Accepts Pin Diameter (Min) | 0.025 in |
| Accepts Square Pin Size | 0.025 " |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 0.077 in |
| Length - Overall | 0.155 in |
| Mounting Hole Diameter | 0.06 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Pin Hole Diameter | 0.051 in |
| Tail Type | No Tail |
| Termination | Solder |
