R49AN32204001K

Active

KEMET

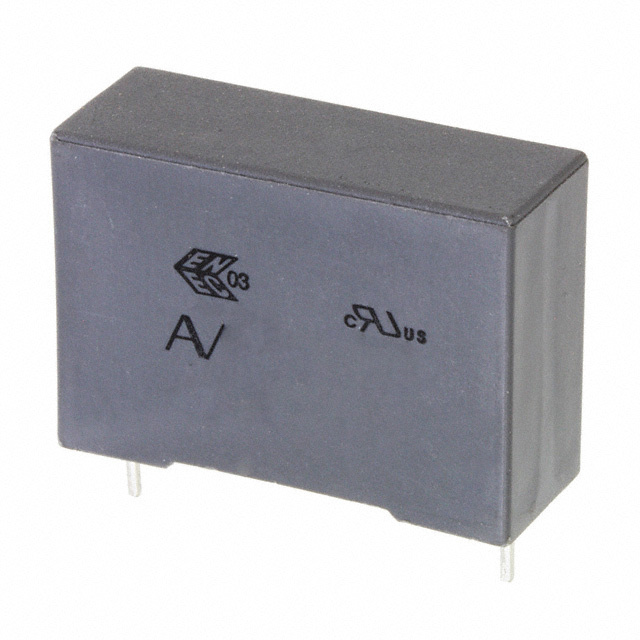

CAP FILM 0.22UF 10% 800VDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.22UF 10% 800VDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R49AN32204001K

Applications	EMI, RFI Suppression
Capacitance	0.22 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	0.673 in
Height - Seated (Max) [Max]	17.1 mm
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	8.5 mm
Size / Dimension [y]	0.335 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	310 V
Voltage Rating - DC	800 V

Part	Package / Case	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Dielectric Material	Ratings	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Capacitance	Termination	Mounting Type	Tolerance	Lead Spacing	Lead Spacing	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R49AN33300001M	Radial	800 V	-40 °C	110 °C	18.5 mm	0.728 in	EMI RFI Suppression	Metallized Polypropylene (PP)	X1	0.394 in	1.043 in	10 mm	26.5 mm	0.33 µF	PC Pins	Through Hole	20 %	22.5 mm	0.886 in	310 V
KEMET R49AN31005001K	Radial	800 V	-40 °C	110 °C	15.1 mm	0.594 in	EMI RFI Suppression	Metallized Polypropylene (PP)	X1	0.236 in	1.043 in	6 mm	26.5 mm	100000 pF	PC Pins	Through Hole	10 %	22.5 mm	0.886 in	310 V
KEMET R49AN368000B1M	Radial	800 V	-40 °C	110 °C			EMI RFI Suppression	Metallized Polypropylene (PP)	X1	0.512 in	1.043 in	13 mm	26.5 mm	680 nF	PC Pins	Through Hole	20 %	22.5 mm	0.886 in	310 V	22 mm	0.866 in
KEMET R49AN32205001K	Radial	800 V	-40 °C	110 °C	16.1 mm	0.634 in	EMI RFI Suppression	Metallized Polypropylene (PP)	X1	0.276 in	1.043 in	7 mm	26.5 mm	0.22 µF	PC Pins	Through Hole	10 %	22.5 mm	0.886 in	310 V
KEMET R49AN32204001K	Radial	800 V	-40 °C	110 °C	17.1 mm	0.673 in	EMI RFI Suppression	Metallized Polypropylene (PP)	X1	0.335 in	1.043 in	8.5 mm	26.5 mm	0.22 µF	PC Pins	Through Hole	10 %	22.5 mm	0.886 in	310 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 0.50

General part information

0.22 µF Film Capacitor 310V 800V Polypropylene (PP), Metallized Radial
