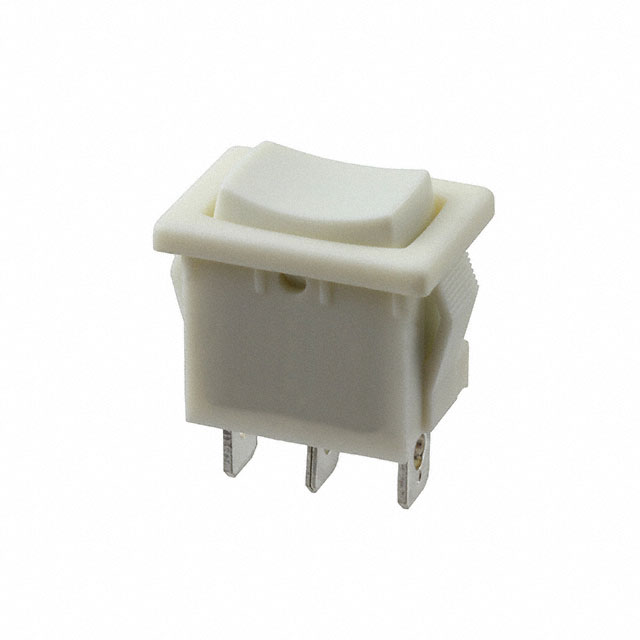

R1966DWHTWHTES
ActiveE-Switch
SWITCH ROCKER SPDT 15A 125V
Deep-Dive with AI
Search across all available documentation for this part.
R1966DWHTWHTES
ActiveE-Switch
SWITCH ROCKER SPDT 15A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R1966DWHTWHTES |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | SPDT |
| Color - Actuator/Cap | White |
| Current Rating (Amps) | 15 A |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 30000 Steps |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.18 | |
| 10 | $ 2.74 | |||
| 25 | $ 2.58 | |||
| 50 | $ 2.47 | |||
| 200 | $ 2.26 | |||
| 400 | $ 2.16 | |||
| 600 | $ 2.11 | |||
| 1000 | $ 2.04 | |||
Description
General part information
R1966DWH Series
Rocker Switch SPDT 15A (AC) 125 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
