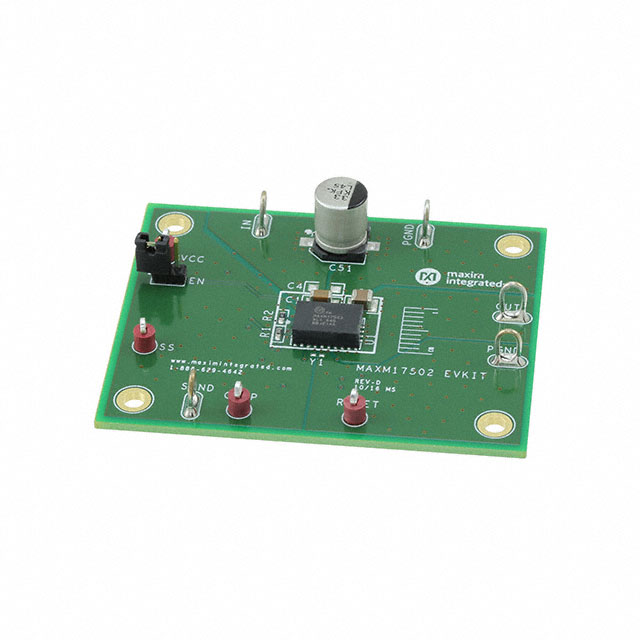

MAXM17502EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17502
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17502EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17502
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17502EVKIT# | MAXM17502 Series |
|---|---|---|
| - | - | |
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 1 A | 1 A |
| Current - Output (Max) | - | 1 A |
| Features | - | OTP, UVLO, OCP |
| Frequency - Switching | 540 kHz | 540 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 28-PowerBLGA Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 0.11 in |
| Size / Dimension | - | 0.26 " |
| Size / Dimension | - | 10 mm |
| Size / Dimension | - | 0.39 " |
| Size / Dimension | - | 2.9 mm |
| Size / Dimension | - | 6.5 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10 |
| Supplier Device Package | - | 6.5 |
| Supplier Device Package | - | 28-LGA |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17502 | MAXM17502 |
| Voltage - Input (Max) | - | 60 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 60 V | 60 V |
| Voltage - Input [Min] | 12 V | 12 V |
| Voltage - Output | 5 V | 5 V |
| Voltage - Output 1 | - | 0.9 V |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.39 | |
MAXM17502 Series
DC DC CONVERTER 0.9-5V
| Part | Features | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Voltage - Input (Min) [Min] | Mounting Type | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Type | Supplier Device Package [y] | Supplier Device Package [x] | Supplier Device Package | Package / Case | Main Purpose | Regulator Topology | Board Type | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Current - Output | Utilized IC / Part | Outputs and Type | Outputs and Type | Frequency - Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17502ALI+ | OCP, OTP, UVLO | 1 A | 60 V | 0.9 V | 5 V | 4.5 V | Surface Mount | ITE (Commercial) | 125 °C | -40 °C | 1 | 0.11 in | 0.26 " | 10 mm | 0.39 " | 2.9 mm | 6.5 mm | Non-Isolated PoL Module | 10 | 6.5 | 28-LGA | 28-PowerBLGA Module | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17502EVKIT# | DC/DC, Step Down | Buck | Fully Populated | Board(s) | 60 V | 12 V | 5 V | 1 A | MAXM17502 | Non-Isolated | 1 | 540 kHz | ||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17502ALI# | ||||||||||||||||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17502ALI#T |
Description
General part information
MAXM17502 Series
MAXM17502 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
