4-1393483-8

Active

TE Connectivity AMP Connectors

CONN D-SUB PLUG 15POS SLDR CUP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-SUB PLUG 15POS SLDR CUP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

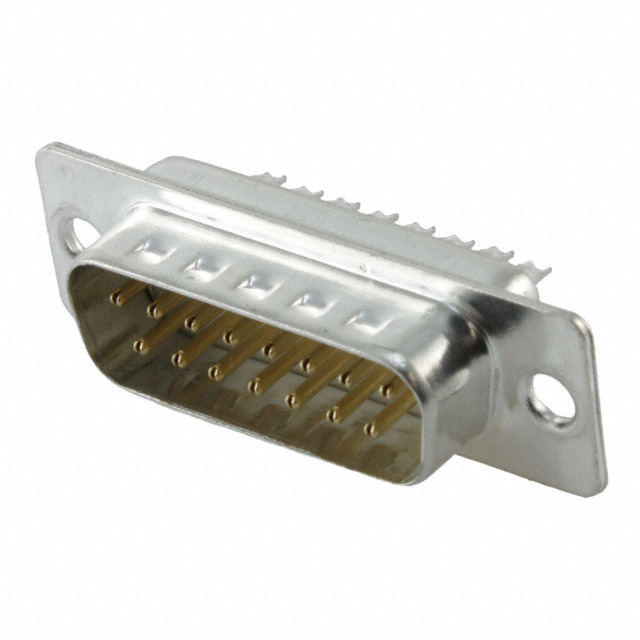

15 Position D-Sub Plug, Male Pins Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	4-1393483-8	1393483 Series

Color	Gray	Gray
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Form	Stamped	Stamped
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester	Polybutylene Terephthalate (PBT), Polyester
Features	Grounding Indents	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	15	15 - 37
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Size, Connector Layout	2	2
Shell Size, Connector Layout	-	4 (DC, C)

CONN D-SUB PLUG 15POS SLDR CUP

Part	Mounting Type	Connector Type	Connector Style	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Flange Feature	Material Flammability Rating	Features	Contact Material	Current Rating (Amps)	Contact Finish	Number of Rows	Dielectric Material	Contact Type	Shell Size, Connector Layout	Number of Positions	Shell Size, Connector Layout
TE Connectivity AMP Connectors 4-1393483-8	Free Hanging (In-Line)	Male Pins, Plug	D-Sub	Gray	-55 °C	125 °C	Stamped	Housing/Shell (Unthreaded)	UL94 V-0	Grounding Indents	Brass	3 A	Gold	2	Polybutylene Terephthalate (PBT), Polyester	Signal	2	15
TE Connectivity AMP Connectors 5-1393483-0	Free Hanging (In-Line)	Male Pins, Plug	D-Sub	Gray	-55 °C	125 °C	Stamped	Housing/Shell (Unthreaded)	UL94 V-0	Grounding Indents	Brass	3 A	Gold	2	Polybutylene Terephthalate (PBT), Polyester	Signal		37	4 (DC, C)
