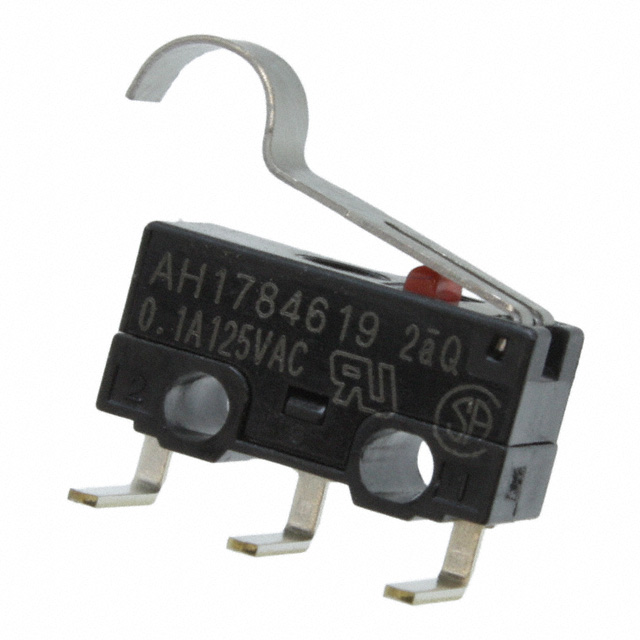

AH1784619-A

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Voltage Rating - AC	Differential Travel	Differential Travel	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Pretravel	Pretravel	Overtravel	Overtravel	Features	Circuit	Operating Force	Mechanical Life	Operating Position	Operating Position	Termination Style	Mounting Type	Release Force	Current Rating (Amps)	Switch Function
Panasonic Electric Works AH1784619-A	100000 Cycles	125 V	0.5 mm	0.02 in	30 V	-25 °C	85 °C	Lever Simulated Roller	2.1 mm	0.083 in	0.02 in	0.5 mm	Actuator Mounted Right Side	SPDT	26 gf	1000000 Cycles	9.5 mm	0.374 in	PC Pin	Through Hole Right Angle	2.039 gf	100 mA	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	100	$ 1.48
