R3G190-RD45-03

Active

ebm-papst Inc.

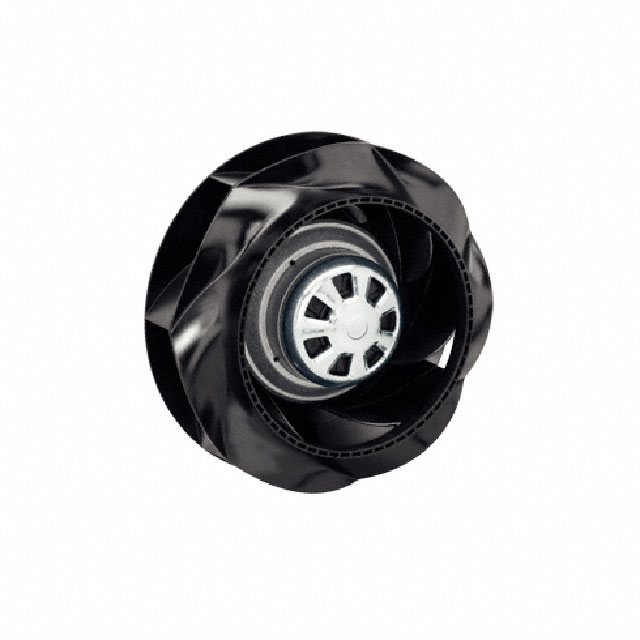

190 MM EC CENTRIFUGAL FAN

Search across all available documentation for this part.

Active

ebm-papst Inc.

190 MM EC CENTRIFUGAL FAN

Technical Specifications

Parameters and characteristics for this part

Specification	R3G190-RD45-03

Air Flow	573.9 CFM
Air Flow	16.07 m³/min
Approval Agency	UL
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	72 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	169 W
RPM	4120 RPM
Size / Dimension	Round
Size / Dimension [diameter]	190 mm
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	3 lb
Weight	1.4 kg
Width [y]	90.7 mm

Part	Material - Frame	Noise	RPM	Width [y]	Bearing Type	Material - Blade	Approval Agency	Power (Watts)	Features	Air Flow	Air Flow	Ingress Protection	Fan Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Size / Dimension	Size / Dimension [diameter]	Voltage - Rated
ebm-papst Inc. R3G190-RD45-03	Aluminum	72 dB(A)	4120 RPM	90.7 mm	Ball	Fiberglass Reinforced Nylon Polyamide (PA)	UL	169 W	Electronic Commutation (EC)	573.9 CFM	16.07 m³/min	IP54 - Dust Protected Water Resistant	Motorized Impellers	2 Wire Leads	-25 °C	60 °C	3 lb	1.4 kg	Round	190 mm	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 230VAC Round - 190mm Dia Ball 573.9 CFM (16.07m³/min) 2 Wire Leads
