C14621R0326004

Active

Amphenol Tuchel Industrial

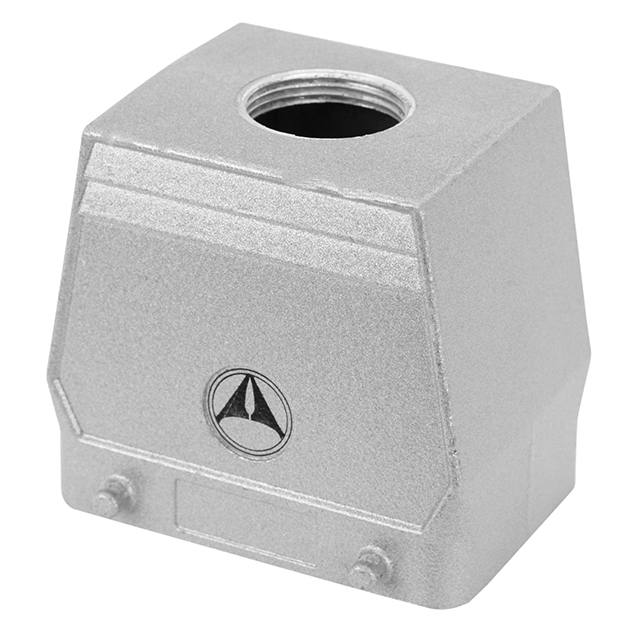

CONN HOOD TOP ENTRY SZA32 M32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C14621R0326004

Active

Amphenol Tuchel Industrial

CONN HOOD TOP ENTRY SZA32 M32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C14621R0326004

Connector Type	Hood
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A32
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	56 mm
Size / Dimension [y]	2.205 in
Size / Dimension [z]	75 mm
Size / Dimension [z]	2.953 in
Style	Top Entry
Thread Size	M32

C14621R032 Series

Part	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Thread Size	Style	Size	Ingress Protection	Connector Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Features
Amphenol Tuchel Industrial C14621R0326024	Aluminum Alloy Die Cast	100 °C	-40 °C	Locking Clip (2) on Hood	M32	Top Entry	A32	IP65 - Dust Tight Water Resistant	Hood
Amphenol Tuchel Industrial C14621R0325004	Aluminum Alloy Die Cast	100 °C	-40 °C	Locking Clip (2) on Base Bottom	M32	Side Entry	A32	IP65 - Dust Tight Water Resistant	Hood	56 mm	2.205 in	75 mm	82 mm	2.953 in	3.228 in
Amphenol Tuchel Industrial C14621R0325524	Aluminum Alloy Die Cast	100 °C	-40 °C	Locking Clip (2) on Hood	M25	Side Entry	A32	IP65 - Dust Tight Water Resistant	Hood
Amphenol Tuchel Industrial C14621R0328034	Aluminum Alloy Die Cast	100 °C	-40 °C	Locking Clip (2) on Hood Top		Bottom Entry	A32	IP65 - Dust Tight Water Resistant	Hood - Coupling							Cable to Cable
Amphenol Tuchel Industrial C14621R0326504	Aluminum Alloy Die Cast	100 °C	-40 °C	Locking Clip (2) on Base Bottom	M25	Top Entry	A32	IP65 - Dust Tight Water Resistant	Hood	56 mm	2.205 in	75 mm	82 mm	2.953 in	3.228 in
Amphenol Tuchel Industrial C14621R0328524	Aluminum Alloy Die Cast	100 °C	-40 °C	Locking Clip (2) on Hood Top	M25	Bottom Entry	A32	IP65 - Dust Tight Water Resistant	Hood - Coupling							Cable to Cable
Amphenol Tuchel Industrial C14621R0326004	Aluminum Alloy Die Cast	100 °C	-40 °C	Locking Clip (2) on Base Bottom	M32	Top Entry	A32	IP65 - Dust Tight Water Resistant	Hood	56 mm	2.205 in	75 mm	82 mm	2.953 in	3.228 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 40.80

Description

General part information

C14621R032 Series

Hood Connector Top Entry M32 A32 IP65 - Dust Tight, Water Resistant
