6282-6SG-311
ActiveConxall/Switchcraft

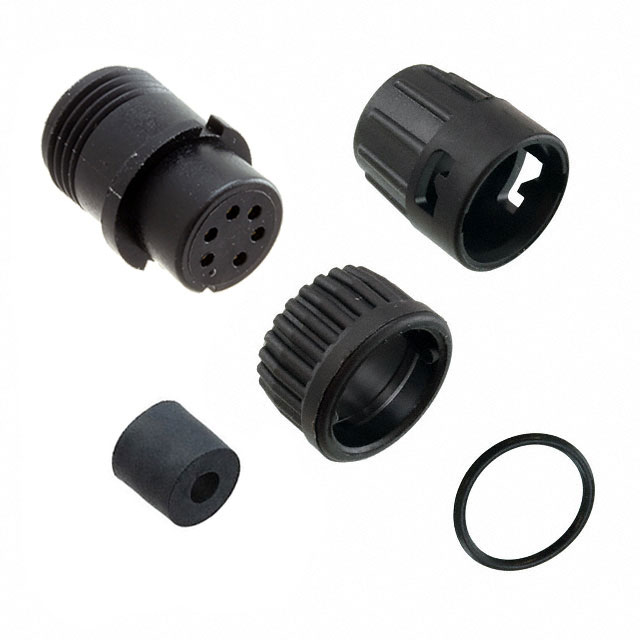

CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6282-6SG-311
ActiveConxall/Switchcraft
CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6282-6SG-311 | 6282-6SG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.16 in |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 4.06 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 5.33 - 6.35 mm |
| Cable Opening | - | 0.21 - 0.25 in |
| Cable Opening | - | 0.19 - 0.22 in |
| Cable Opening | - | 4.83 - 5.59 mm |
| Cable Opening | - | 0.13 - 0.17 in |
| Cable Opening | - | 3.3 - 4.32 mm |
| Cable Opening | - | 5.84 mm |
| Cable Opening [diameter] | 2.29 mm | 2.29 mm |
| Cable Opening [diameter] | 0.14 in, 0.09 in | 0.09 - 0.14 in |
| Cable Opening [diameter] | 3.56 mm | 3.56 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
6282-6SG Series
CONN PLUG FMALE 6P GOLD SLDR CUP
| Part | Current Rating (Amps) | Voltage Rating | Backshell Material, Plating | Primary Material | Contact Finish - Mating | Mounting Type | Contact Material | Shielding | Applications | Connector Type | Orientation | Number of Positions | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Features | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Fastening Type | Color | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6282-6SG-516 | Varies by Wire Gauge | 600 V | Nylon, Polyamide (PA) | Plastic | Gold | Free Hanging (In-Line) | Brass | Unshielded | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Keyed | 6 | Weathertight | -40 °C | 115 °C | Backshell | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | Bayonet Lock | Black | ||||||||||
Conxall/Switchcraft 6282-6SG-522 | Varies by Wire Gauge | 600 V | Nylon, Polyamide (PA) | Plastic | Gold | Free Hanging (In-Line) | Brass | Unshielded | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Keyed | 6 | Weathertight | -40 °C | 115 °C | Backshell | Bayonet Lock | Black | 6.35 mm | 0.25 in | 0.22 in | 5.59 mm | ||||||||||
Conxall/Switchcraft 6282-6SG-3DC | Varies by Wire Gauge | 600 V | Nylon, Polyamide (PA) | Plastic | Gold | Free Hanging (In-Line) | Brass | Unshielded | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Keyed | 6 | Weathertight | -40 °C | 115 °C | Backshell | Bayonet Lock | Black | ||||||||||||||
Conxall/Switchcraft 6282-6SG-513 | Varies by Wire Gauge | 600 V | Nylon, Polyamide (PA) | Plastic | Gold | Free Hanging (In-Line) | Brass | Unshielded | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Keyed | 6 | Weathertight | -40 °C | 115 °C | Backshell | Bayonet Lock | Black | 0.13 in, 0.15 in | 3.3 mm, 3.81 mm | ||||||||||||
Conxall/Switchcraft 6282-6SG-311 | Varies by Wire Gauge | 600 V | Nylon, Polyamide (PA) | Plastic | Gold | Free Hanging (In-Line) | Brass | Unshielded | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Keyed | 6 | Weathertight | -40 °C | 115 °C | Backshell | Bayonet Lock | Black | 2.29 mm | 0.09 in, 0.14 in | 3.56 mm | |||||||||||
Conxall/Switchcraft 6282-6SG-321 | Varies by Wire Gauge | 600 V | Nylon, Polyamide (PA) | Plastic | Gold | Free Hanging (In-Line) | Brass | Unshielded | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Keyed | 6 | Weathertight | -40 °C | 115 °C | Backshell | Bayonet Lock | Black | 0.23 in | 0.21 in | 5.33 mm | 5.84 mm | ||||||||||
Conxall/Switchcraft 6282-6SG-519 | Varies by Wire Gauge | 600 V | Nylon, Polyamide (PA) | Plastic | Gold | Free Hanging (In-Line) | Brass | Unshielded | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Keyed | 6 | Weathertight | -40 °C | 115 °C | Backshell | Bayonet Lock | Black | 5.33 mm | 0.21 in | 0.19 in | 4.83 mm | ||||||||||
Conxall/Switchcraft 6282-6SG-315 | Varies by Wire Gauge | 600 V | Nylon, Polyamide (PA) | Plastic | Gold | Free Hanging (In-Line) | Brass | Unshielded | Automotive, Communication Systems, Instrumentation | Female Sockets, Plug | Keyed | 6 | Weathertight | -40 °C | 115 °C | Backshell | Bayonet Lock | Black | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm |
