H32B-TS-M32
ActiveTE Connectivity AMP Connectors
H32B-TS-M32
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H32B-TS-M32
ActiveTE Connectivity AMP Connectors
H32B-TS-M32
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H32B-TS-M32 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H32B |
| Size / Dimension [x] | 3.701 " |
| Size / Dimension [x] | 94 mm |
| Size / Dimension [y] | 82.5 mm |
| Size / Dimension [y] | 3.248 in |
| Size / Dimension [z] | 76 mm |
| Size / Dimension [z] | 2.992 in |
| Style | Side Entry |
| Thread Size | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.86 | |
| 10 | $ 14.77 | |||
T1210320132 Series
H32B-TS-M32
| Part | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Connector Type | Style | Housing Finish | Lock Location | Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Ingress Protection | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H32B-TS-M32 | Gray | 125 °C | -40 °C | Aluminum Alloy, Die Cast | Hood | Side Entry | Powder Coated | Locking Clip (2) on Base Bottom | H32B | 82.5 mm | 3.701 " | 76 mm | 3.248 in | 2.992 in | 94 mm | IP65 - Dust Tight, Water Resistant | M32 |
Description
General part information
T1210320132 Series

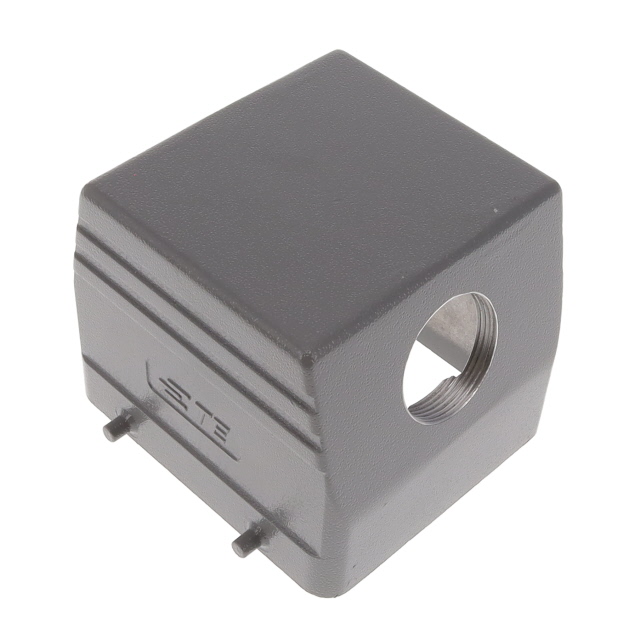

Hood Connector Side Entry M32 H32B IP65 - Dust Tight, Water Resistant
