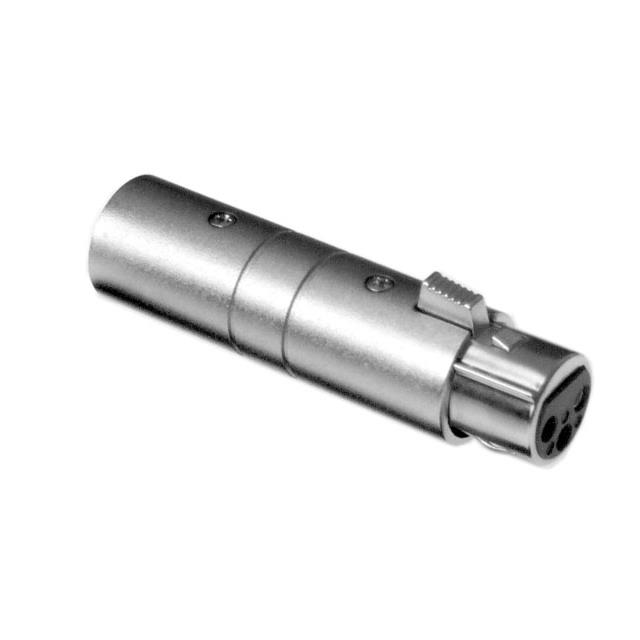

AC3F3MBW

Active

AMPHENOL AUDIO

CONN ADAPTER 3P-3P F-M INLINE

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN ADAPTER 3P-3P F-M INLINE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AC3F3MBW	AC3F Series

Color	-	Silver, Black
Connector Style	Standard	Standard
Connector Type	-	Female Sockets, Plug
Contact Finish - Mating	-	Silver
Convert From (Adapter End)	Female Sockets	Female Sockets
Convert To (Adapter End)	Male Pins	Male Pins
Fastening Type	Detent Lock, Push-Pull	Latch Lock, Detent Lock, Push-Pull
Features	Locking Mechanism	Ground, Locking Mechanism, Cable Clamp, Backshell
Housing Color	Black	Black
Ingress Protection	-	IP40
Mounting Feature	-	Flange
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions (Convert From)	3	3
Operating Temperature	-	-25 °C
Operating Temperature	-	75 ░C
Orientation	-	Keyed
Orientation (Convert From)	Keyed	Keyed
Orientation (Convert To)	Keyed	Keyed
Primary Material	-	Metal
Shell Finish	-	Nickel, Polyester
Shell Material	-	Zinc Die Cast
Shell Size - Insert	-	XLR
Shell Size - Insert (Convert From)	XLR	XLR
Shell Size - Insert (Convert To) [custom]	XLR	XLR
Shielding	Unshielded	Shielded, Unshielded

CONN PLUG FMALE XLR 3P SLDR CUP

Part	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Orientation	Shell Material	Ingress Protection	Fastening Type	Shielding	Mounting Feature	Primary Material	Color	Shell Size - Insert	Contact Finish - Mating	Features	Convert From (Adapter End)	Orientation (Convert From)	Number of Positions (Convert From)	Convert To (Adapter End)	Housing Color	Connector Style	Orientation (Convert To)	Shell Size - Insert (Convert To) [custom]	Shell Size - Insert (Convert From)	Mounting Type
AMPHENOL AUDIO AC3FDZ	Female Sockets, Plug	-25 °C	75 ░C	Nickel	Keyed	Zinc Die Cast	IP40	Latch Lock	Shielded	Flange	Metal	Silver	XLR	Silver	Ground
AMPHENOL AUDIO AC3F3MBW								Detent Lock, Push-Pull	Unshielded						Locking Mechanism	Female Sockets	Keyed	3	Male Pins	Black	Standard	Keyed	XLR	XLR	Free Hanging (In-Line)
AMPHENOL AUDIO AC3FDZB	Female Sockets, Plug	-25 °C	75 ░C	Polyester	Keyed	Zinc Die Cast	IP40	Latch Lock		Flange	Metal	Black	XLR	Silver
AMPHENOL AUDIO AC3F	Female Sockets, Plug	-25 °C	75 ░C	Nickel	Keyed	Zinc Die Cast	IP40	Latch Lock			Metal	Silver	XLR	Silver	Backshell, Cable Clamp										Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Circular Connector Standard 3/3 Female Sockets/Male Pins Free Hanging (In-Line)
