FA1-NCSJ-C01-0

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FA1-NCSJ-C01-0

Active

Amphenol RF

CONN FAKRA JACK STR 50 OHM CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NCSJ-C01-0

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Latch Lock
Features	Code C
Frequency - Max [Max]	6000 MHz
Housing Color	Blue, Signal
Impedance	50 Ohms

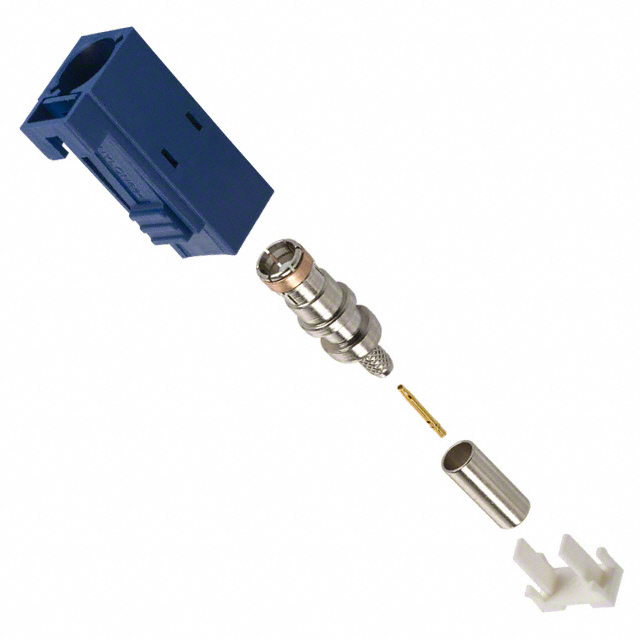

Includes	1 Housing, 1 Contact, 1 Ferrule, 1 Connector, 1 Locking Clip
Insertion Loss	0.3 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

FA1-NCSJ Series

Part	Number of Ports	Mounting Type	Center Contact Plating	Includes	Contact Termination	Insertion Loss	Connector Style	Frequency - Max [Max]	Impedance	Dielectric Material	Shield Termination	Connector Type	Fastening Type	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Body Material	Cable Group	Housing Color	Features
Amphenol RF FA1-NCSJ-C01-6	1	Free Hanging (In-Line)	Gold	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Crimp	0.3 dB	Fakra SMB	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Jack	Latch Lock	Nickel	100 °C	-40 °C	Beryllium Copper	Brass	188 188A 316 LMR-100 M17/119-RG174 RG-174	Blue Signal	Code C
Amphenol RF FA1-NCSJ-C04-0	1	Free Hanging (In-Line)	Gold	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Crimp	0.3 dB	Fakra SMB	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Jack	Latch Lock	Nickel	100 °C	-40 °C	Beryllium Copper	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Blue Signal	Code C
Amphenol RF FA1-NCSJ-C04-6	1	Free Hanging (In-Line)	Gold	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Crimp	0.3 dB	Fakra SMB	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Jack	Latch Lock	Nickel	100 °C	-40 °C	Beryllium Copper	Brass	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Blue Signal	Code C
Amphenol RF FA1-NCSJ-C01-0	1	Free Hanging (In-Line)	Gold	1 Connector 1 Contact 1 Ferrule 1 Housing 1 Locking Clip	Crimp	0.3 dB	Fakra SMB	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Crimp	Female Socket Jack	Latch Lock	Nickel	100 °C	-40 °C	Beryllium Copper	Brass	188 188A 316 LMR-100 M17/119-RG174 RG-174	Blue Signal	Code C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.71
		10	$ 3.37
		25	$ 3.19
		50	$ 3.12
		100	$ 2.97
		250	$ 2.60
		500	$ 2.52
		1000	$ 2.15
		2500	$ 2.00

Description

General part information

FA1-NCSJ Series

SMB, Fakra Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
