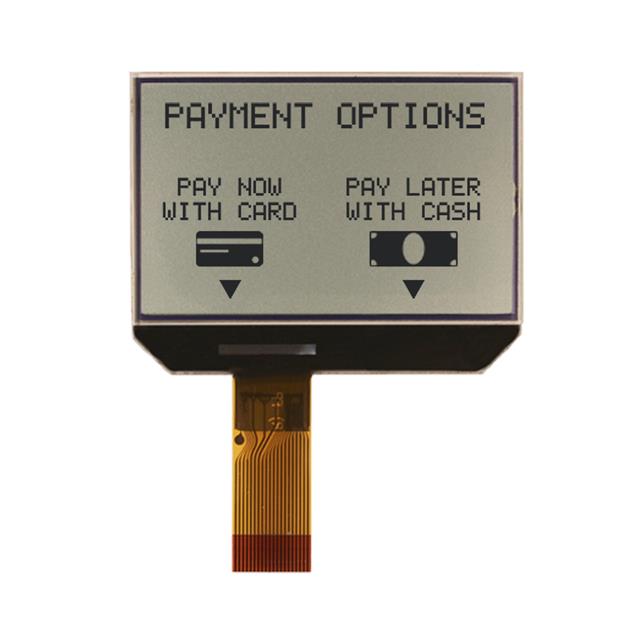

NHD-C160100CZ-RN-FBW

Active

Newhaven Display Intl

LCD COG GRAPH 160X100 NO REFL

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD COG GRAPH 160X100 NO REFL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NHD-C160100CZ-RN-FBW	NHD-C160100 Series

Background Color	Gray	Gray
Backlight	Without Backlight	Without Backlight, LED - White
Controller Type	ST-7528	ST-7528, ST-7528i
Display Mode	Reflective	Reflective, Transflective
Display Type	FSTN - Film Super-Twisted Nematic	FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic
Dot Pitch [x]	0.25 mm	0.22 - 0.25 mm
Dot Pitch [y]	0.25 mm	0.22 - 0.25 mm
Dot Size [y]	0.23 mm	0.2 - 0.23 mm
Dot Size [z]	0.23 mm	0.2 - 0.23 mm
Graphics Color	Black (Gray - Inverted)	Black (Gray - Inverted), Blue
Interface	Parallel/Serial	Parallel/Serial, I2C
Viewing Area [x]	43.6 mm	38.5 - 46.2 mm
Viewing Area [y]	27.25 mm	25.2 - 33.89 mm

LCD COG GRAPH 160X100 NO REFL

Part	Interface	Display Type	Viewing Area [y]	Viewing Area [x]	Dot Pitch [x]	Dot Pitch [y]	Dot Size [y]	Dot Size [z]	Display Mode	Backlight	Controller Type	Graphics Color	Background Color
Newhaven Display Intl NHD-C160100CZ-RN-FBW	Parallel/Serial	FSTN - Film Super-Twisted Nematic	27.25 mm	43.6 mm	0.25 mm	0.25 mm	0.23 mm	0.23 mm	Reflective	Without Backlight	ST-7528	Black (Gray - Inverted)	Gray
Newhaven Display Intl NHD-C160100AZ-RN-GBW	Parallel/Serial	STN - Super-Twisted Nematic	25.2 mm	38.5 mm	0.22 mm	0.22 mm	0.2 mm	0.2 mm	Reflective	Without Backlight	ST-7528	Blue	Gray
Newhaven Display Intl NHD-C160100DIZ-FSW-FBW	I2C	FSTN - Film Super-Twisted Nematic	33.89 mm	46.2 mm	0.25 mm	0.25 mm	0.23 mm	0.23 mm	Transflective	LED - White	ST-7528i	Black (Gray - Inverted)	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2000	$ 15.08

General part information

Graphic LCD Display Module Reflective Black (Gray - Inverted) FSTN - Film Super-Twisted Nematic Parallel/Serial 160 x 100
