957220-2000-AR-PR
Active3M (TC)

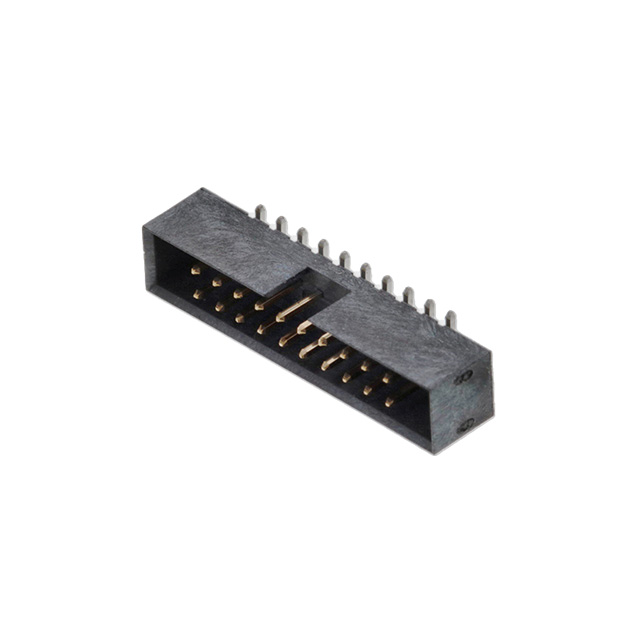

CONN HEADER SMD 20POS 2MM
Deep-Dive with AI
Search across all available documentation for this part.
957220-2000-AR-PR
Active3M (TC)
CONN HEADER SMD 20POS 2MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 957220-2000-AR-PR |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Pick and Place, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 5.6 mm |
| Insulation Height | 0.22 in |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.38 | |
| 10 | $ 3.98 | |||
| 100 | $ 3.50 | |||
| Digi-Reel® | 1 | $ 4.38 | ||
| 10 | $ 3.98 | |||
| 100 | $ 3.50 | |||
| Tape & Reel (TR) | 400 | $ 2.68 | ||
| 800 | $ 2.50 | |||
| 1200 | $ 2.40 | |||
| 2000 | $ 2.29 | |||
| 2800 | $ 2.22 | |||
| 4000 | $ 2.17 | |||
Description
General part information
957220 Series
Connector Header Surface Mount 20 position 0.079" (2.00mm)
Documents
Technical documentation and resources
