DS28E17K#
ActiveAnalog Devices Inc./Maxim Integrated

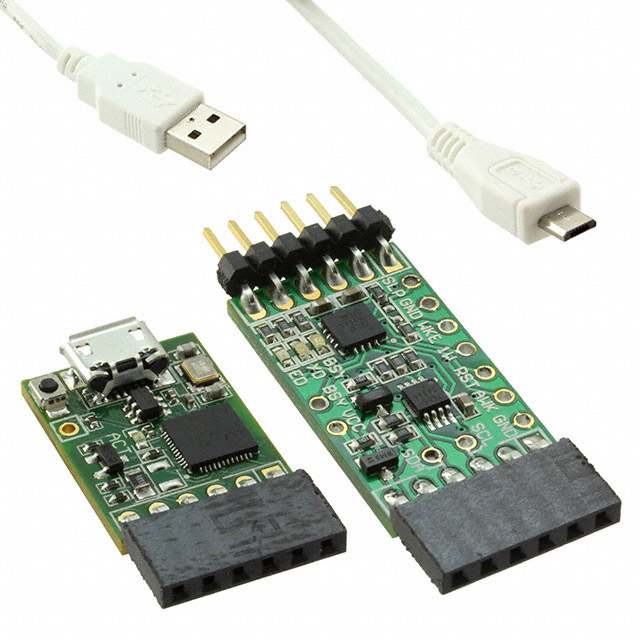

EVAL KIT FOR DS28E17
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDS28E17
DS28E17K#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR DS28E17
Deep-Dive with AI
DocumentsDS28E17
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DS28E17K# | DS28E17 Series |
|---|---|---|
| Current - Supply | - | 2.6 mA |
| Function | 1-Wire to I2C | Bridge, 1-Wire® to I2C, 1-Wire to I2C |
| Interface | - | I2C |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 16-WQFN Exposed Pad |
| Protocol | - | 1-Wire® |
| Secondary Attributes | Graphical User Interface (GUI) | Graphical User Interface (GUI) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 16-TQFN (4x4) |
| Type | Interface | Interface |
| Utilized IC / Part | DS28E17 | DS28E17 |
| Voltage - Supply | - | 2.45 V |
| Voltage - Supply | - | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 66.50 | |
DS28E17 Series
IC BRIDGE 1-WIRE TO I2C 16TQFN
| Part | Supplier Device Package | Interface | Voltage - Supply [Min] | Voltage - Supply [Max] | Current - Supply | Protocol | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Function | Secondary Attributes | Type | Supplied Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated DS28E17Q+T | 16-TQFN (4x4) | I2C | 2.45 V | 3.6 V | 2.6 mA | 1-Wire® | 85 °C | -40 °C | 16-WQFN Exposed Pad | Bridge, 1-Wire® to I2C | ||||
Analog Devices Inc./Maxim Integrated DS28E17K# | 1-Wire to I2C | Graphical User Interface (GUI) | Interface | Board(s) | DS28E17 | |||||||||
Analog Devices Inc./Maxim Integrated DS28E17Q+ | 16-TQFN (4x4) | I2C | 2.45 V | 3.6 V | 2.6 mA | 1-Wire® | 85 °C | -40 °C | 16-WQFN Exposed Pad | Bridge, 1-Wire® to I2C |
Description
General part information
DS28E17 Series
DS28E17 1-Wire to I2C Interface Evaluation Board
Documents
Technical documentation and resources
