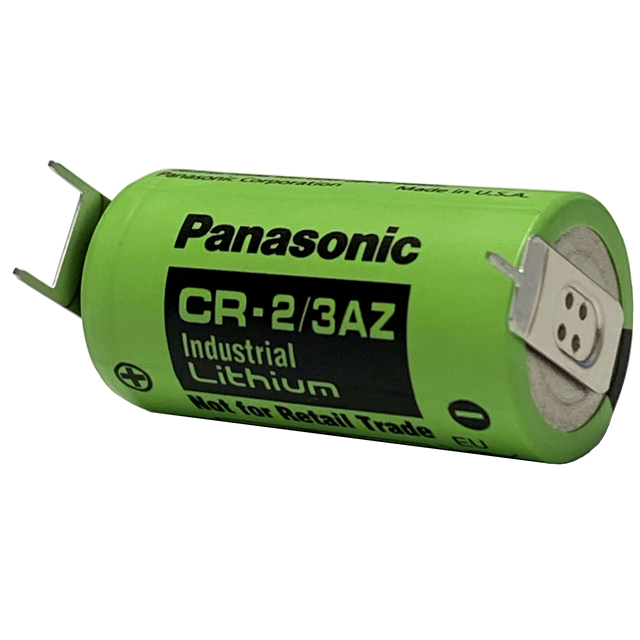

CR-2/3AZE2PN
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V 2/3 A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CR-2/3AZE2PN
ActivePanasonic Industrial Automation Sales
BATTERY LITHIUM 3V 2/3 A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CR-2/3AZE2PN |
|---|---|
| Battery Cell Size | 2/3A |
| Battery Chemistry | Lithium |
| Capacity | 1.6 Ah |
| Discharge Rate | 2.5 mA |
| Shelf Life Start | Date of Manufacture |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension [diameter] | 0.67 in |
| Size / Dimension [diameter] | 17 mm |
| Size / Dimension [z] | 1.32 in |
| Size / Dimension [z] | 33.5 mm |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Max] | 35 °C |
| Storage/Refrigeration Temperature [Min] | -4 °F |
| Storage/Refrigeration Temperature [Min] | -20 °C |
| Termination Style | Solder Tab |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.03 | |
| 20 | $ 5.00 | |||
| 40 | $ 4.65 | |||
| 100 | $ 4.17 | |||
| 300 | $ 3.87 | |||
| 600 | $ 3.66 | |||
| 1200 | $ 3.50 | |||
Description
General part information
CR-2/3 Series
2/3A Lithium 3 V Battery Non-Rechargeable (Primary)
