6792212332F

Active

DIALIGHT

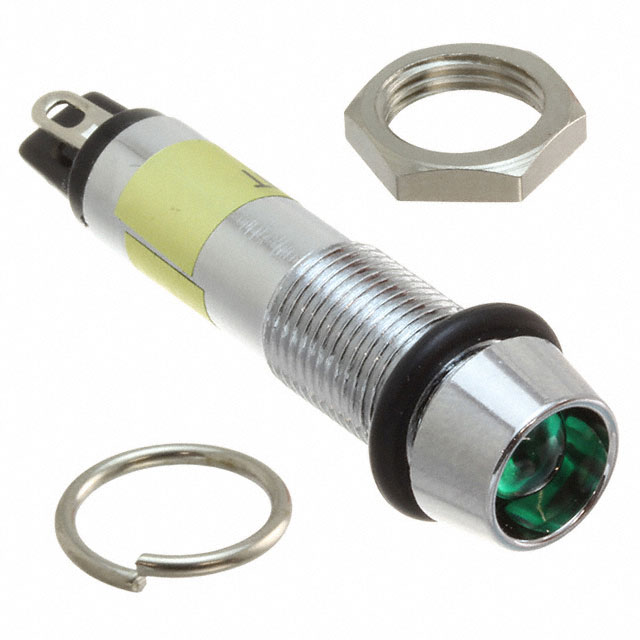

9MM HG/G PMI-12VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HG/G PMI-12VDC W/O-RING

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6792212332F	6792212 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Green	Green
Millicandela Rating	5870 mcd	5870 - 25000 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	30 °
Voltage	12 V	6 - 24 V
Wavelength - Peak	-	525 nm

LED PANEL INDCATOR GREEN 24V

Part	Millicandela Rating	Panel Cutout Shape	Wavelength - Peak	Ingress Protection	Lamp Color	Termination Style	Voltage	Type	Ratings	Current	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]	Viewing Angle	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]
DIALIGHT 6792212342F	25000 mcd	Round	525 nm	IP66, NEMA 4X	Green	Solder Lug	24 V	LED	DC	30 mA	0.37 in	9.35 mm	30 °
DIALIGHT 6792212322F	25000 mcd	Round	525 nm	IP66, NEMA 4X	Green	Solder Lug	6 V	LED	DC	30 mA	0.37 in	9.35 mm	30 °
DIALIGHT 6792212332F	5870 mcd	Round		IP66, NEMA 4X	Green	Solder Lug	12 V	LED	DC	30 mA				0.37 in	9.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green 12V 30mA Solder Lug
