Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-A6983CV1 | STEVAL-A6983CV1 Series |
|---|---|---|
| - | - | |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 3 A | 3 A |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Regulator Topology | Buck | Buck |
| Supplied Contents | Board(s) | Board(s) |
| Utilized IC / Part | A6983C | A6983C |
| Voltage - Input [Max] | 38 V | 38 V |
| Voltage - Input [Min] | 3.5 V | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
STEVAL-A6983CV1 Series
Evaluation board based on DC-DC converter buck regulator A6983CQTR
| Part | Main Purpose | Board Type | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Regulator Topology | Supplied Contents | Outputs and Type | Outputs and Type |
|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-A6983CV1 | ||||||||||
STMicroelectronics STEVAL-A6983CV1 | ||||||||||
STMicroelectronics STEVAL-A6983CV1 | DC/DC, Step Down | Fully Populated | 3 A | 38 V | 3.5 V | A6983C | Buck | Board(s) | Non-Isolated | 1 |
Description
General part information
STEVAL-A6983CV1 Series

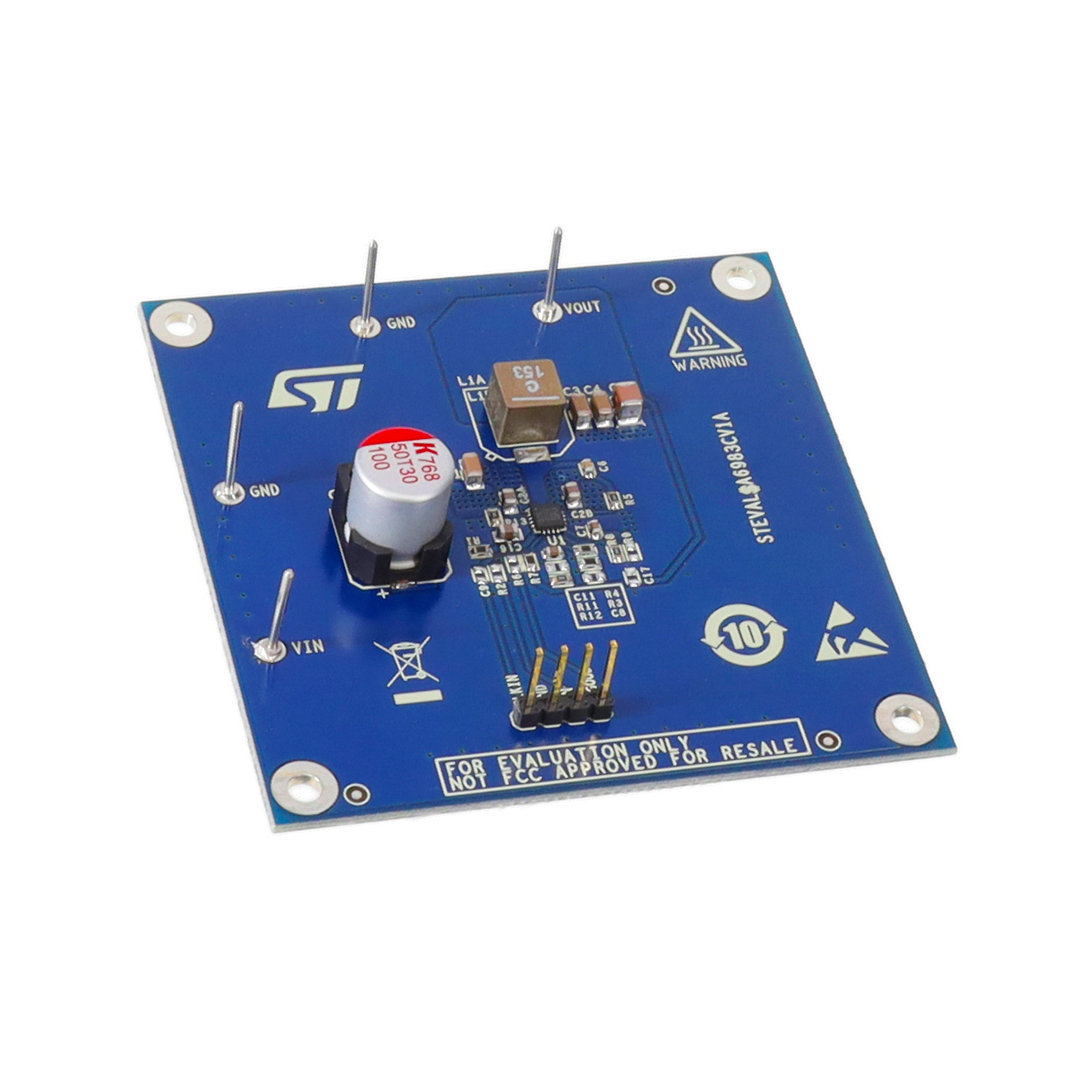

The STEVAL-A6983CV1 is an easy to use synchronous monolithic step-down regulator capable of delivering up to 3 A DC to the load.
The wide input voltage range makes the device suitable for a broad range of applications.
The STEVAL-A6983CV1 is based on a peak current mode architecture and is packaged in a QFN16 (3 x 3 mm) with internal compensation thus minimizing design complexity and size.
