97000.6

Active

Pflitsch

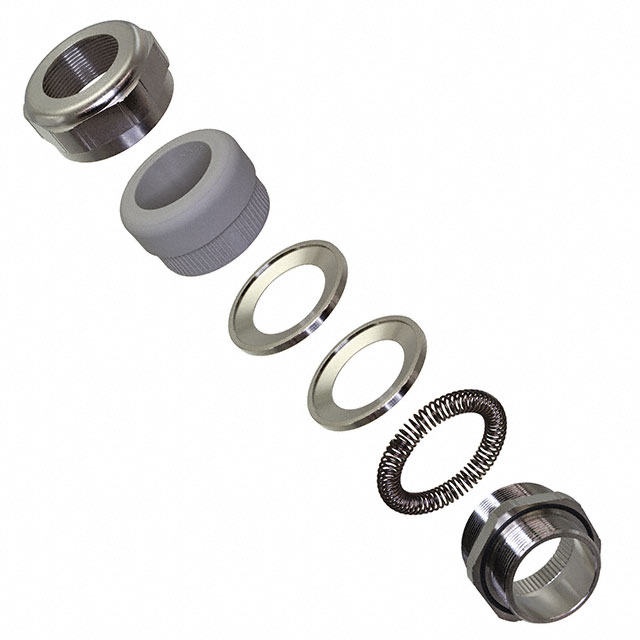

CABLE GLAND 24.89-28.96MM M40

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 24.89-28.96MM M40

Technical Specifications

Parameters and characteristics for this part

Specification	97000.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	28.96 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.14 in
Outside Cable Diameter (Min) [Min] [diameter]	0.98 "
Outside Cable Diameter (Min) [Min] [diameter]	24.89 mm
Panel Hole Size [x]	1.57 in
Panel Hole Size [x]	39.9 mm
Thread Length	0.55 in
Thread Length	13.97 mm
Thread Size	M40x1.5
Type	Cable Gland

Part	Panel Hole Size [x]	Panel Hole Size [x]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Thread Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Ingress Protection	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Type	Color	Thread Length	Thread Length
Pflitsch 97000.6	1.57 in	39.9 mm	0.98 "	24.89 mm	Brass Nickel Plated	M40x1.5	28.96 mm	1.14 in	IP68 - Dust Tight Waterproof; NEMA 4X	Sealing Ring	-40 °C	300 °C	Cable Gland	Silver	0.55 in	13.97 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M40x1.5 Silver
