3402.0014.11

Active

SCHURTER Inc.

FUSE BRD MNT 3A 63VAC 63VDC 2SMD

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MNT 3A 63VAC 63VDC 2SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3402.0014.11	3402.0014 Series

Breaking Capacity @ Rated Voltage	50 A	50 A
Current Rating (Amps)	3 A	3 A
Fuse Type	Board Mount	Board Mount
Melting I˛t	-	1.3
Melting I²t	1.3	1.3
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	2-SMD, J-Lead	2-SMD, J-Lead
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	7.4 mm	7.4 mm
Size / Dimension [x]	0.291 "	0.291 "
Size / Dimension [y]	0.122 in	0.122 in
Size / Dimension [y]	3.1 mm	3.1 mm
Size / Dimension [z]	2.6 mm	2.6 mm
Size / Dimension [z]	0.102 "	0.102 "
Voltage Rating - AC	63 V	63 V
Voltage Rating - DC	63 VDC	63 VDC

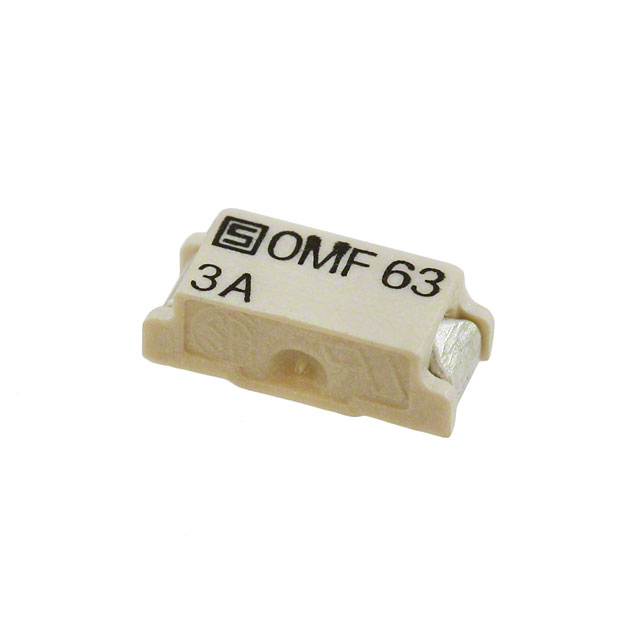

FUSE BRD MNT 3A 63VAC 63VDC 2SMD

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current Rating (Amps)	Fuse Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	Response Time	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Melting I²t	Melting I˛t
SCHURTER Inc. 3402.0014.11	0.122 in	7.4 mm	2.6 mm	3.1 mm	0.291 "	0.102 "	3 A	Board Mount	2-SMD, J-Lead	-55 °C	125 °C	50 A	Fast Blow	Surface Mount	63 V	63 VDC	1.3
SCHURTER Inc. 3402.0014.22	0.122 in	7.4 mm	2.6 mm	3.1 mm	0.291 "	0.102 "	3 A	Board Mount	2-SMD, J-Lead	-55 °C	125 °C	50 A	Fast Blow	Surface Mount	63 V	63 VDC		1.3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 A 63 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, J-Lead
