C3R886HCLO

Active

Hammond Manufacturing

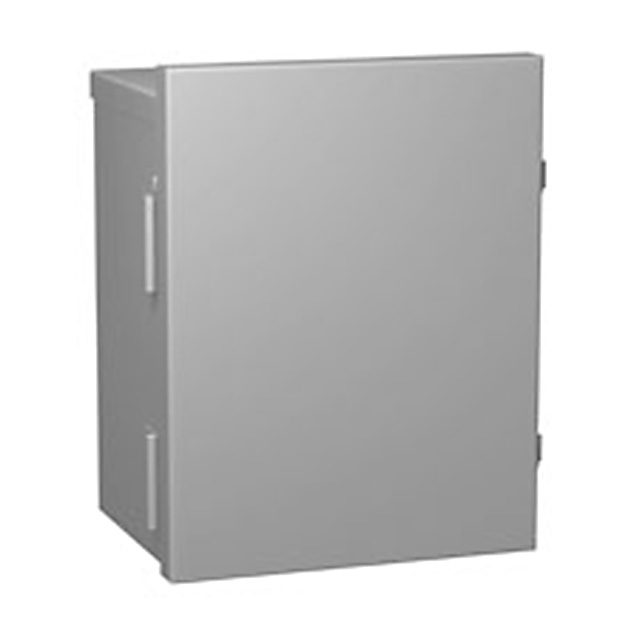

BOX STEEL GRAY 8"L X 8"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL GRAY 8"L X 8"W

Technical Specifications

Parameters and characteristics for this part

Specification	C3R886HCLO

Area (L x W)	413 cm²
Area (L x W)	64 in²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Wall Mount, Steel Hinges, Snap Latch
Height [z]	152.4 mm
Height [z]	6 in
Material	Metal, Steel
Ratings	IP24, UL-50, NEMA 3R
Size / Dimension [x]	203.2 mm
Size / Dimension [x]	8 "
Size / Dimension [y]	203.2 mm
Size / Dimension [y]	8 in

Part	Container Type	Features	Ratings	Material	Area (L x W)	Area (L x W)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Design	Height [z]	Height [z]	Color
Hammond Manufacturing C3R886HCLO	Box	Snap Latch Steel Hinges Wall Mount	IP24 NEMA 3R UL-50	Metal Steel	413 cm²	64 in²	203.2 mm	203.2 mm	8 "	8 in	Hinged Door Lid	152.4 mm	6 in	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 74.03

General part information

Box Metal, Steel Gray Hinged Door, Lid 8.000" L x 8.000" W (203.20mm x 203.20mm) X 6.000" (152.40mm)

Technical documentation and resources

No documents available
