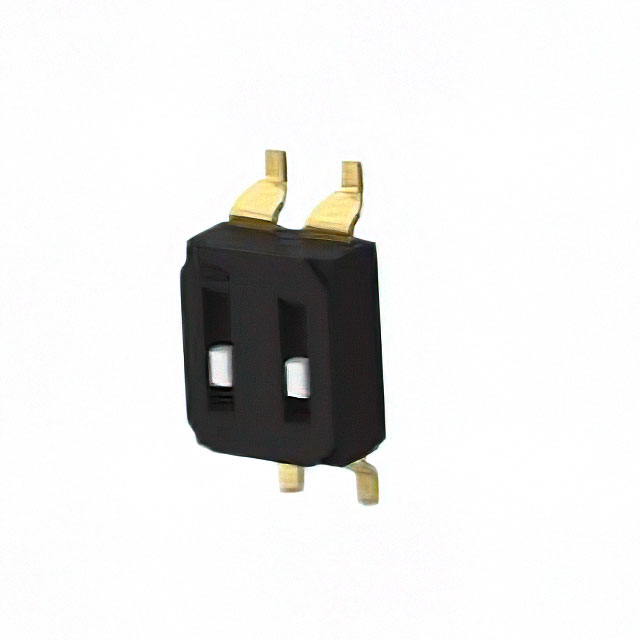

EDS02SGRNTR04Q

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Mechanical Life	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Body Material	Contact Material	Contact Finish	Circuit	Number of Positions	Electrical Life	Actuator Level	Height Above Board [z]	Height Above Board [z]	Actuator Type	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Height Above Board	Height Above Board
TE Connectivity Raychem Cable Protection EDS02SNRSTU04Q	24 VDC	2000 Cycles	J Lead	25 mA	85 °C	-20 C	0.196 in	4.98 mm	Nylon Polyamide (PA)	Copper Alloy	Gold	SPST	2	2000 Steps	Flush Recessed	0.136 in	3.45 mm	Slide (Standard)	0.1 in	Full	2.54 mm	Surface Mount
TE Connectivity Raychem Cable Protection EDS02SGRSTU04Q	24 VDC	2000 Cycles	Gull Wing	25 mA	85 °C	-20 C	0.196 in	4.98 mm	Nylon Polyamide (PA)	Copper Alloy	Gold	SPST	2	2000 Steps	Flush Recessed	0.134 in	3.4 mm	Slide (Standard)	0.1 in	Full	2.54 mm	Surface Mount
TE Connectivity Raychem Cable Protection EDS02SGRNTR04Q	24 VDC	2000 Cycles	Gull Wing	25 mA	85 °C	-20 C	0.196 in	4.98 mm	Nylon Polyamide (PA)	Copper Alloy	Gold	SPST	2	2000 Steps	Flush Recessed	0.134 in	3.4 mm	Slide (Standard)	0.1 in	Full	2.54 mm	Surface Mount
TE Connectivity Raychem Cable Protection EDS02SNNNTU04Q	24 VDC	2000 Cycles	J Lead	25 mA	85 °C	-20 C	0.196 in	4.98 mm	Nylon Polyamide (PA)	Copper Alloy	Gold	SPST	2	2000 Steps	Raised			Slide (Standard)	0.1 in	Full	2.54 mm	Surface Mount	0.152 in	3.85 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
